10 Color Digital Water Temperature Gauge | GlowShift

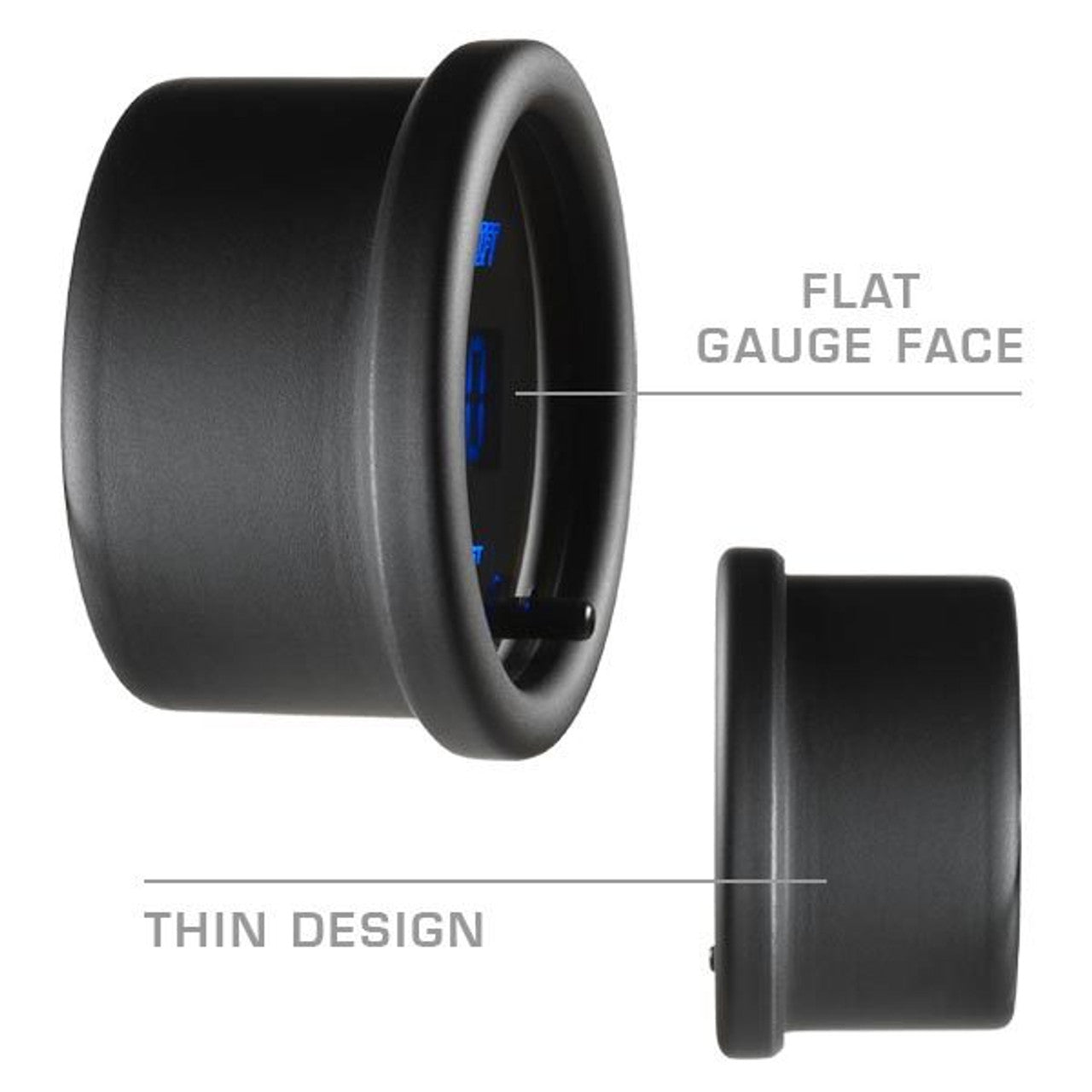

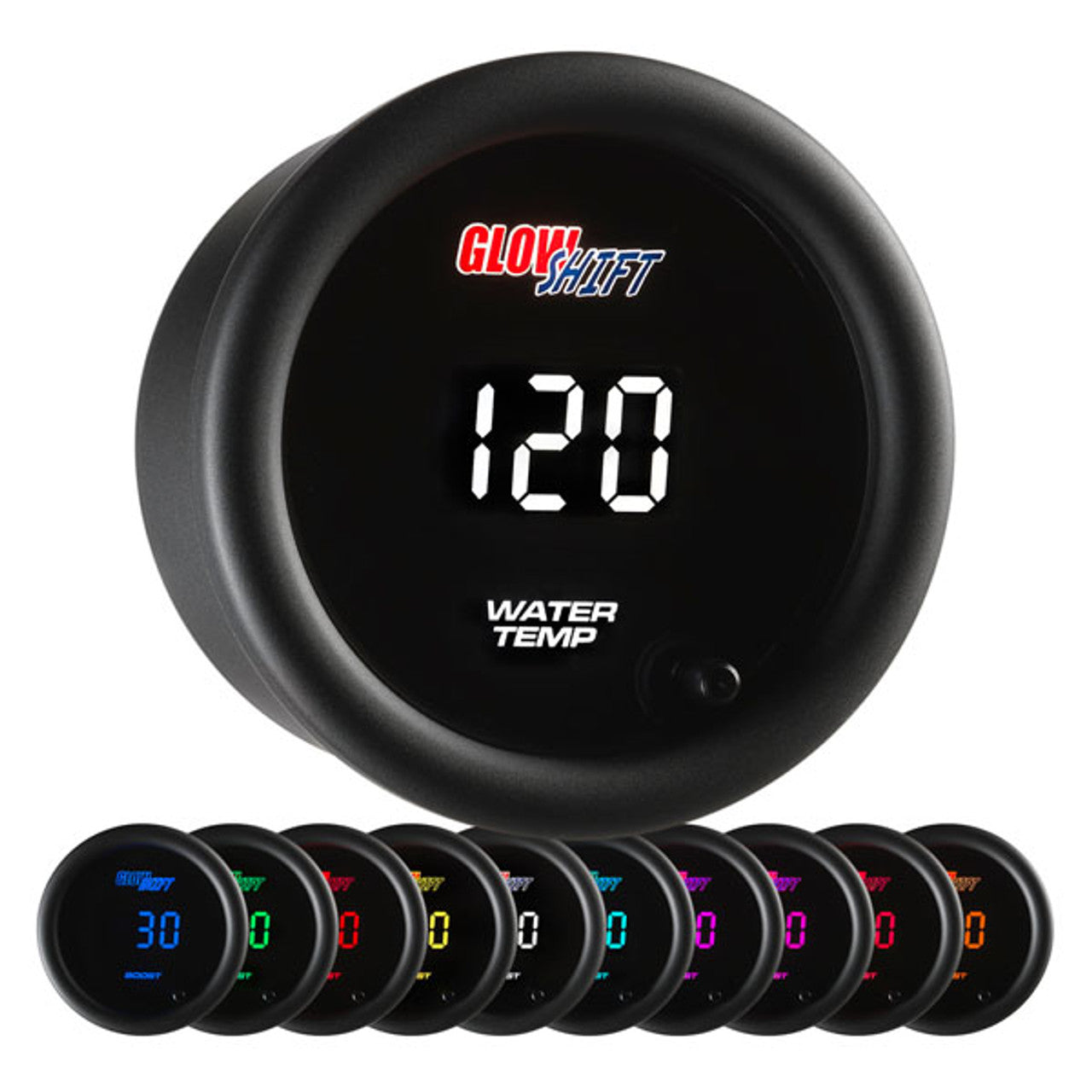

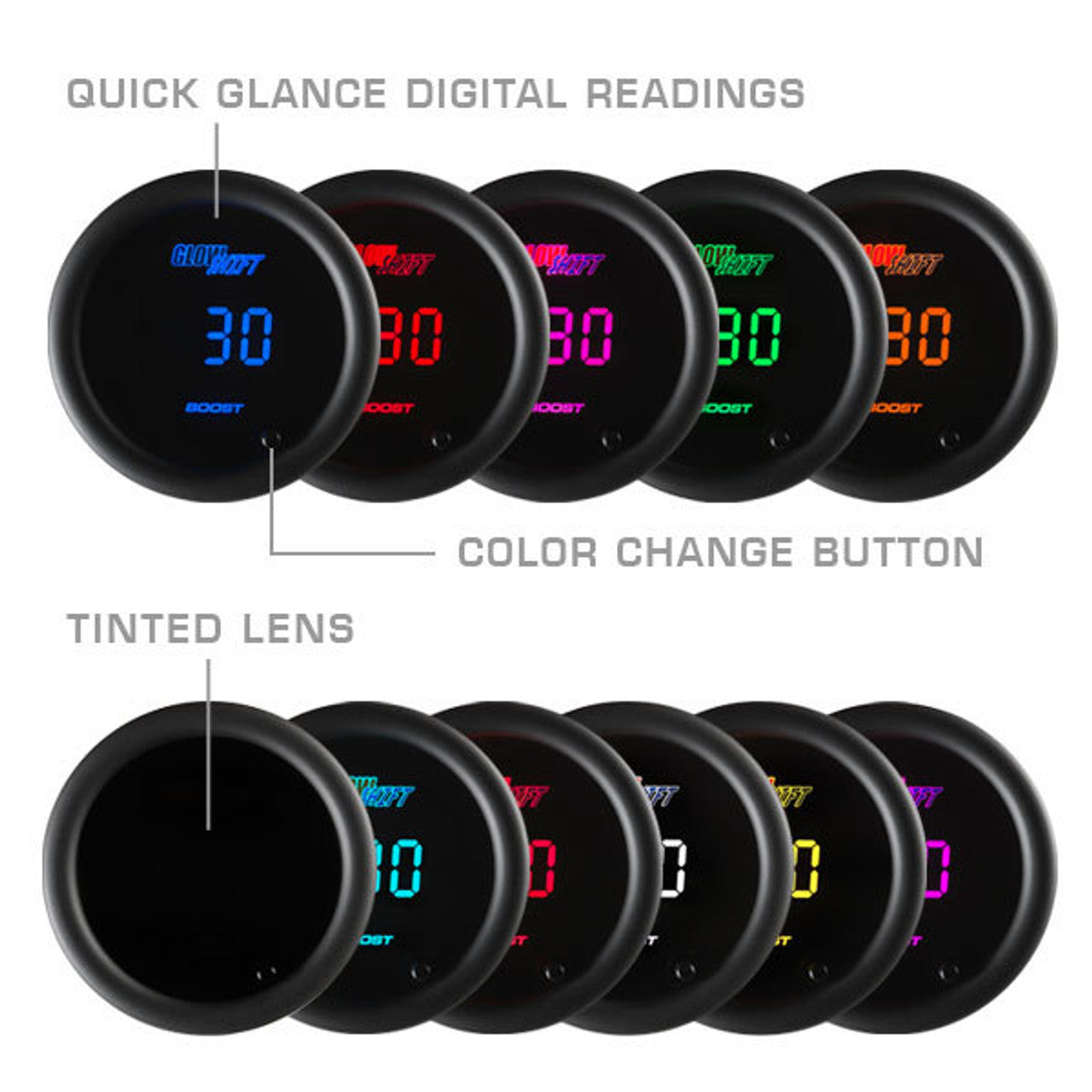

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

 Manufacturer Part Number: GS-TCD06

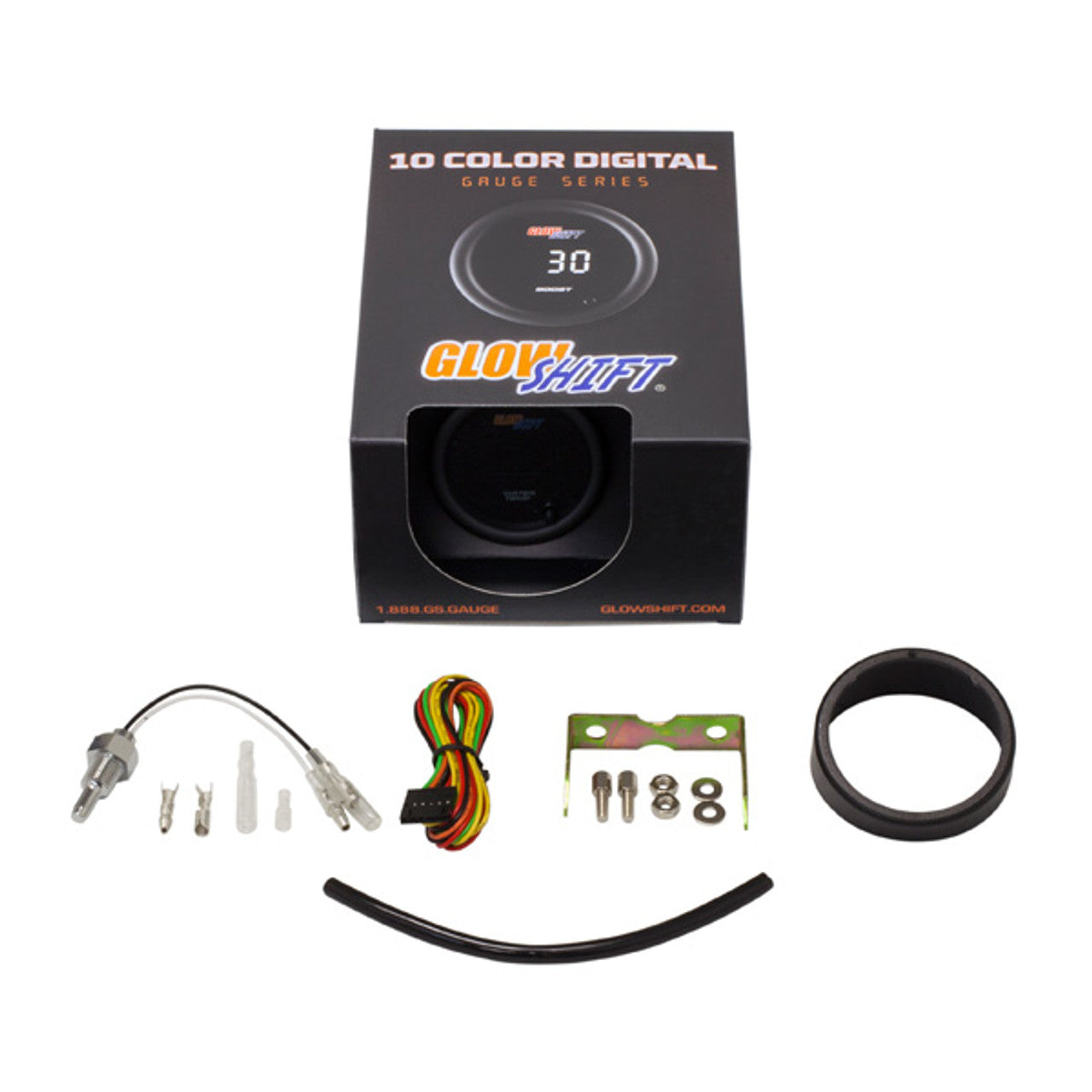

• 2-1/16” (52mm) Digital Water Temp Gauge

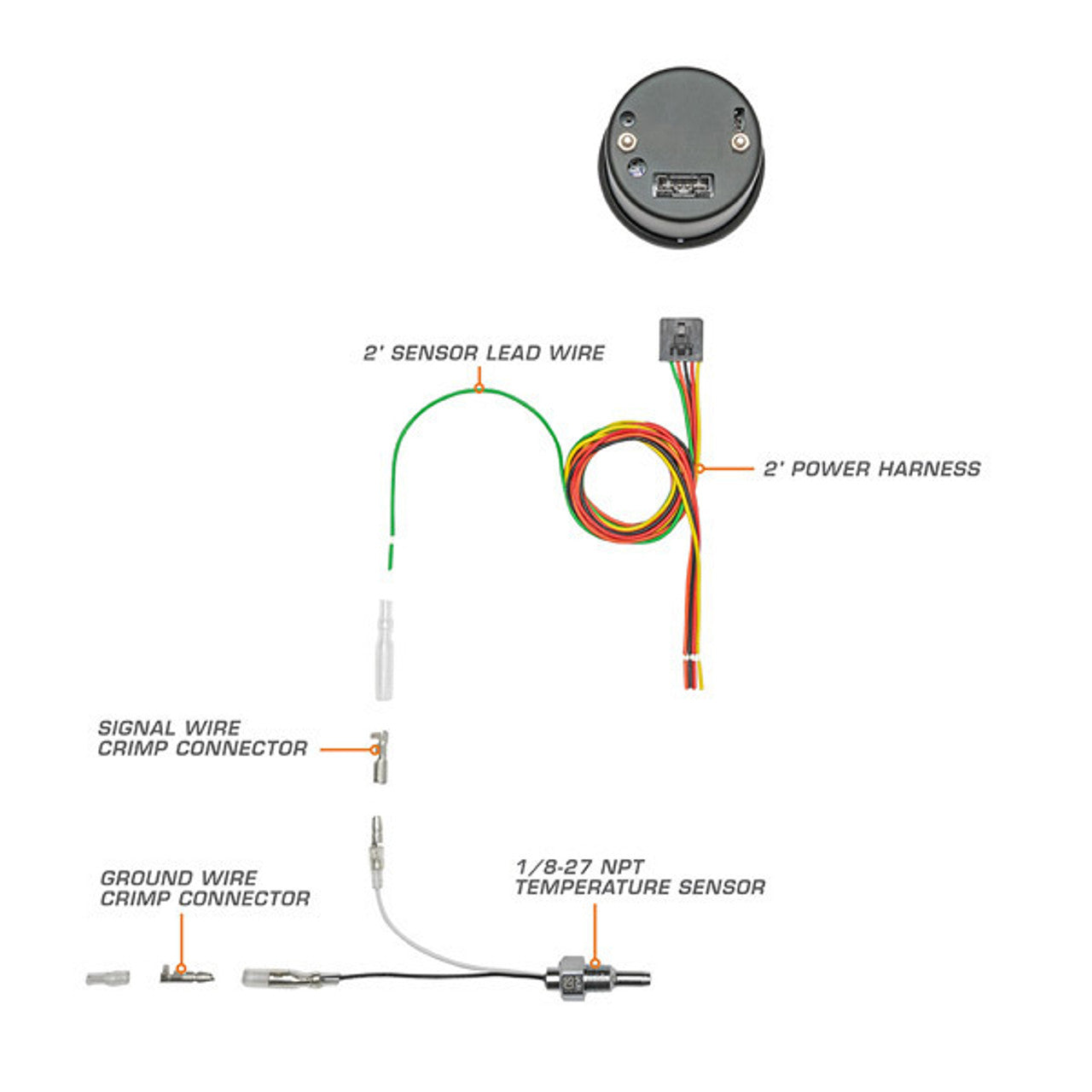

• 1/8-27 NPT Temperature Sensor
• 2’ Sensor & Power Harness
• Gauge Visor
• Mounting Bracket
• Mounting Bracket Hardware
• Installation Instructions
