1990 - 2005 Miata NA/NB Reinforced Sway Bar Brackets - AWR

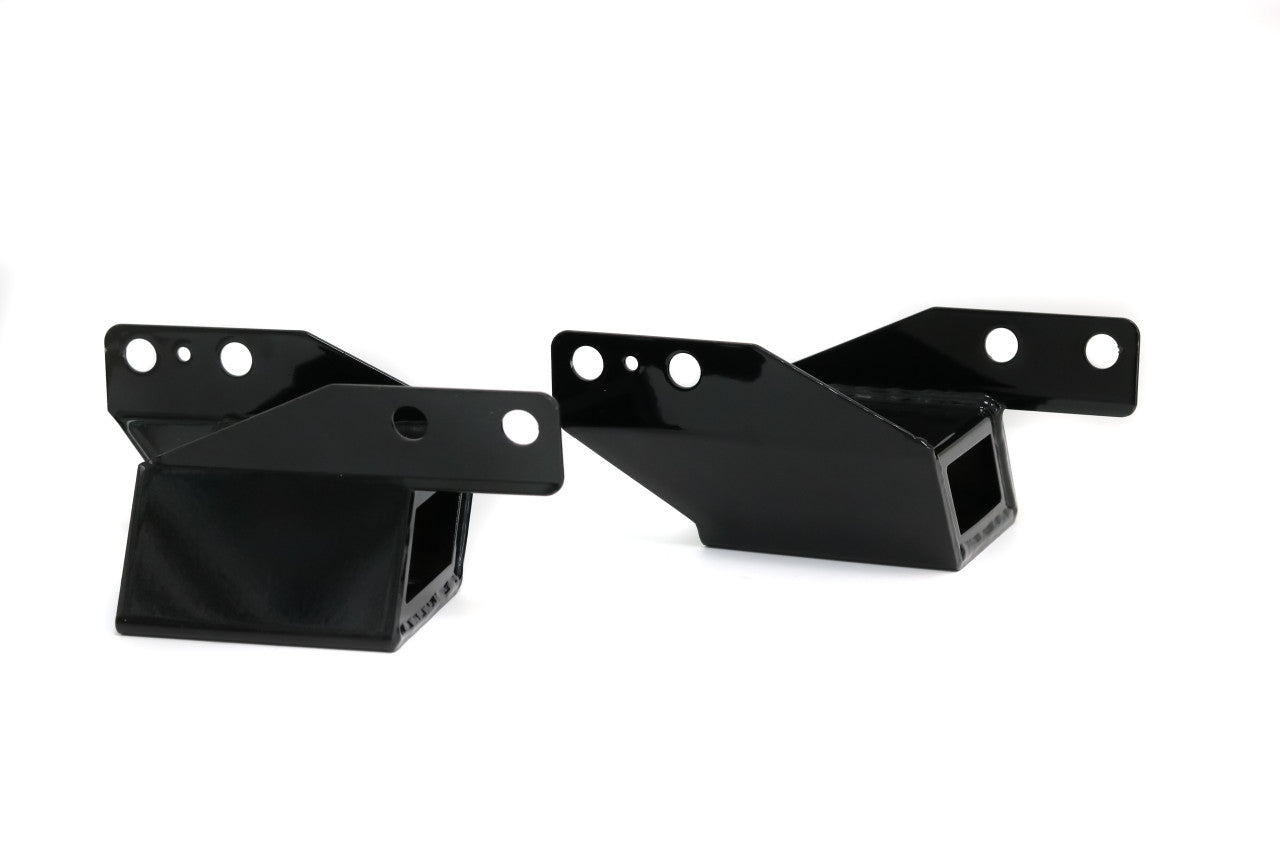

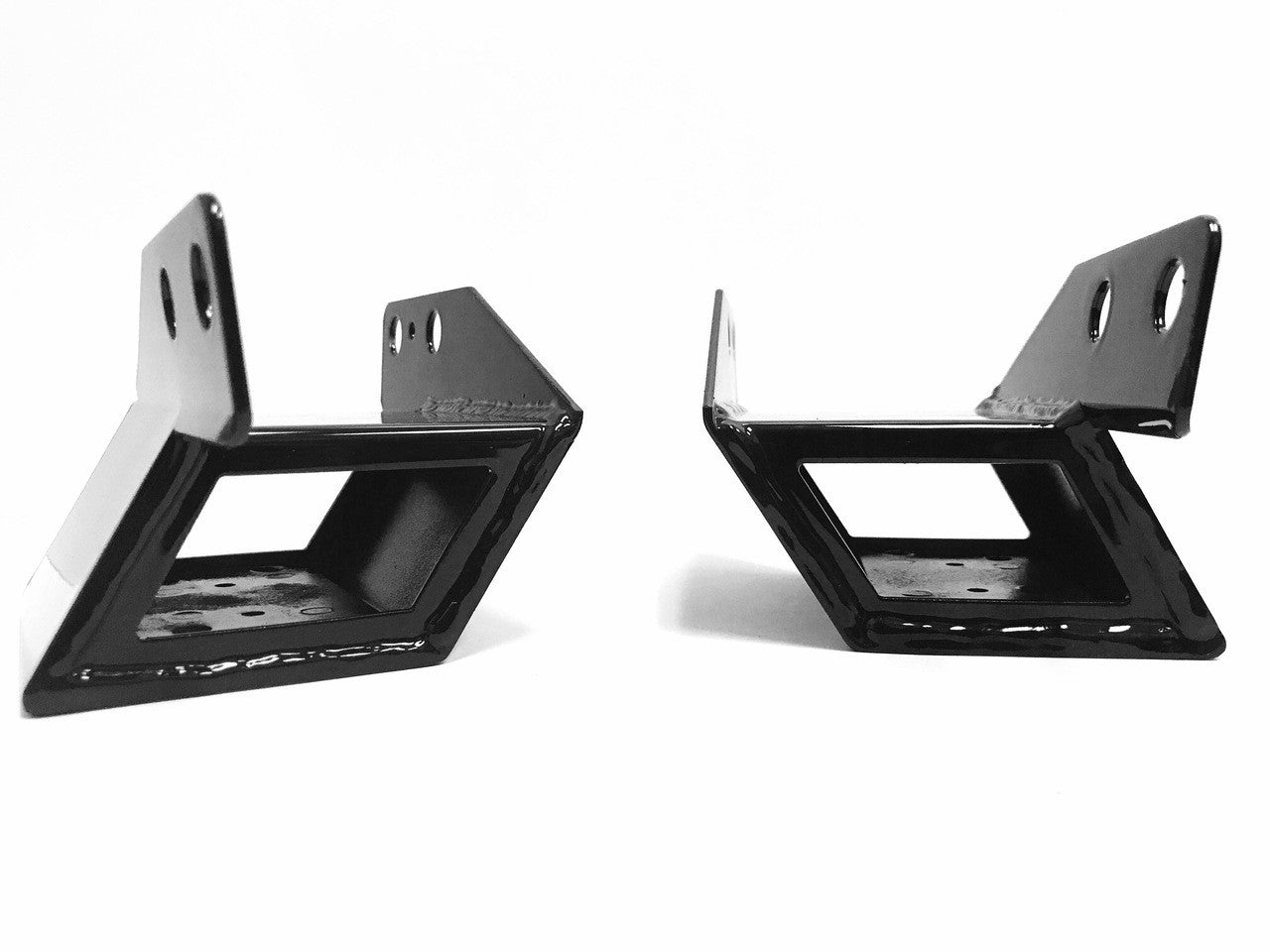

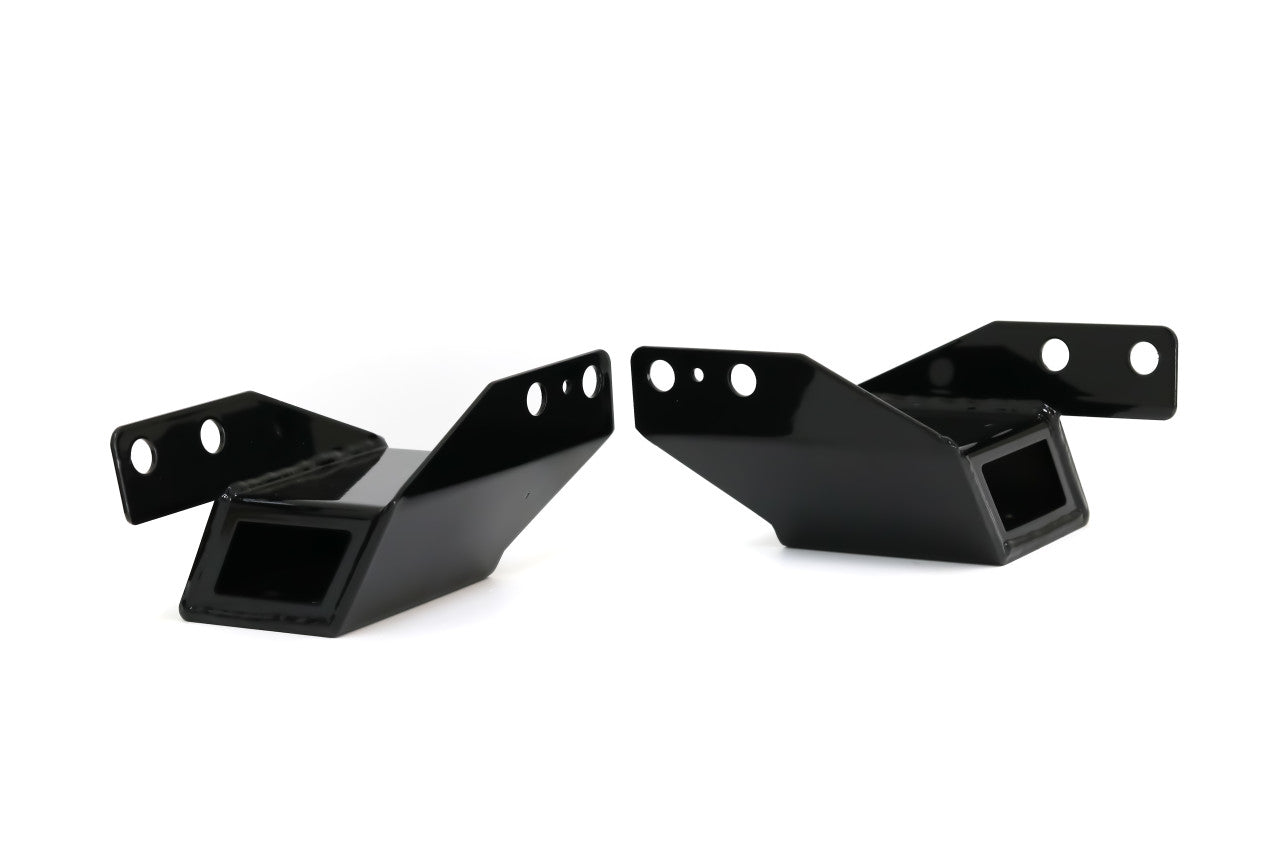

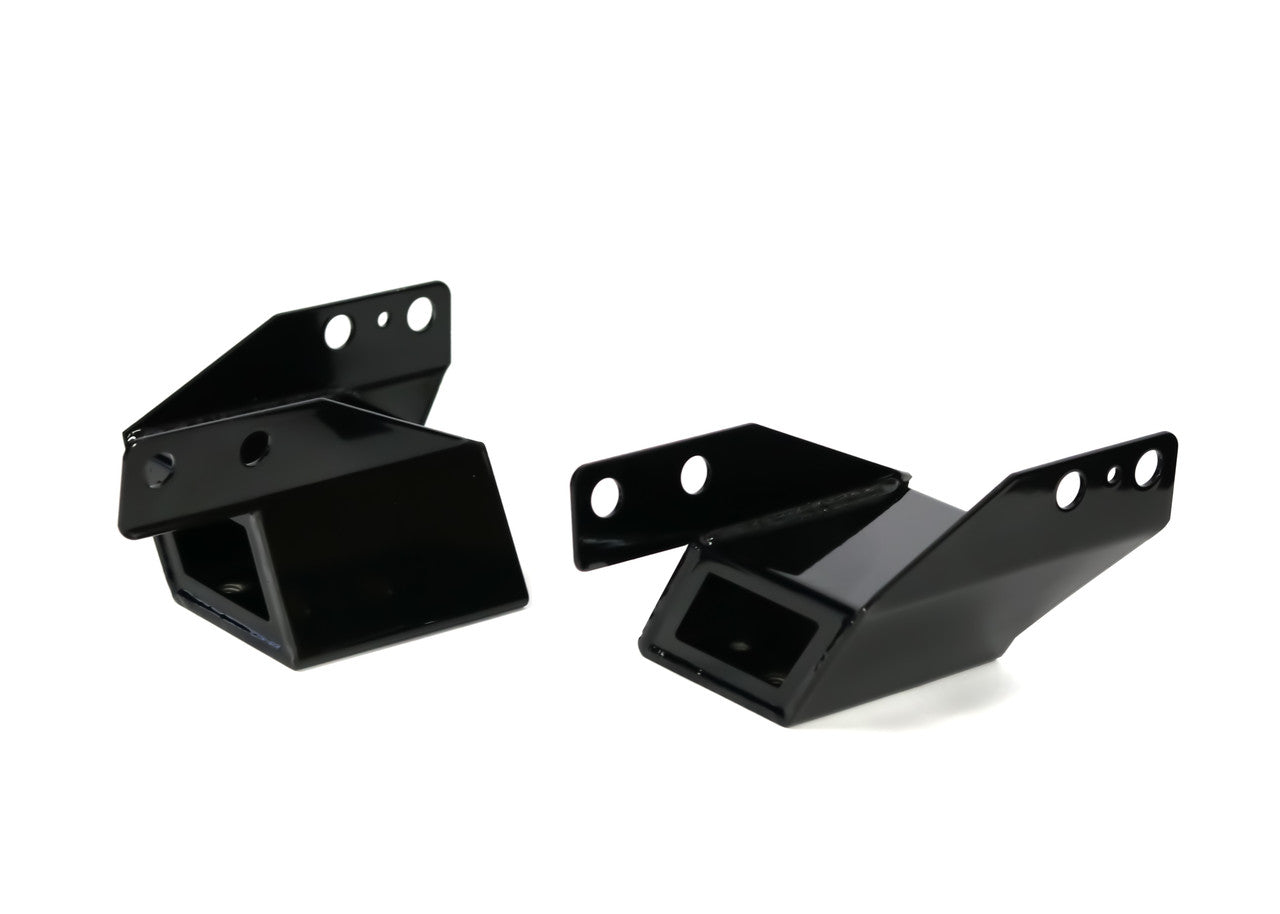

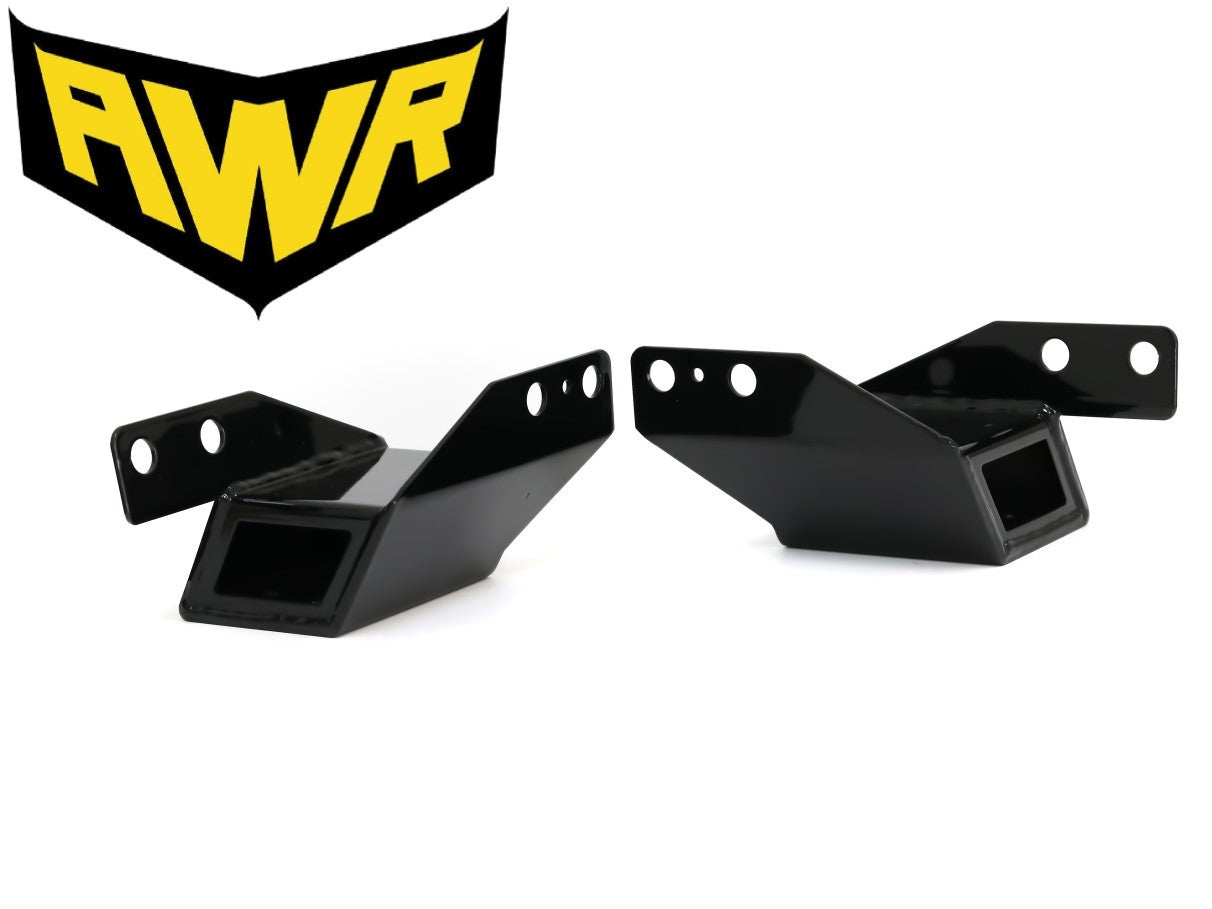

Reinforced sway bar brackets for the NA/NB chassis by AWR Racing.

Made in the USA, laser cut and CNC folded, mig welded steel units. Powder coated black for a super durable finish. All units are provided with AWR's lifetime warranty. These redesigned sway bar brackets for the 1st gen Miata(NA) are now the same part for 2nd gen Miatas (NB). A slight revision in the bolting dimensions allows for the use of more aftermarket sway bar clamps. These brackets fit cars with and without power steering. Open ended reinforced sway bar brackets allow the option of putting power steering hoses through the bracket.

In racing and autocross use, especially when using larger sway bars and driving aggressively, the stock sway bar brackets can flex to the point of breaking. These reinforced brackets replace the stock ones to eliminate this problem.

These revised units will accept OEM sway bar clamps, Racing Beat aluminum sway bar clamps and Energy Suspension sway bar kits.

NOTE* Spot welds attaching the stock mounts to frame must be drilled out.

Items included:

• Reinforced sway bar brackets by AWR Racing
• hardware

The sway bar bracket hardware kit consists of the following items:
8 x 8mm x 1.25 x 16mm flange head bolt - used to mount the bracket to the frame rail from 1990 to 1997.
8 x 6mm x 1.00 x 16mm flange head bolt - used to mount the bracket to the frame rail from 1999 to 2005.
4 x 8mm x 1.25 x 16mm flange head bolt - used for mounting oem style sway bar to sway bar bracket.
4 x 3/8" x 16 x 5/8" hex head bolt and 4 x 3/8 sae washers - used to mount aftermarket bar to sway bar bracket.

Specifications:

• Made in the USA
• Laser cut
• CNC folded
• Mig welded
• Powder coated black for a durable finish

Application:

1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 NA Miata

1999, 2000, 2001, 2002, 2003, 2004, 2005 NB Miata
