Elite 10 Color Oil Pressure Gauge | GlowShift

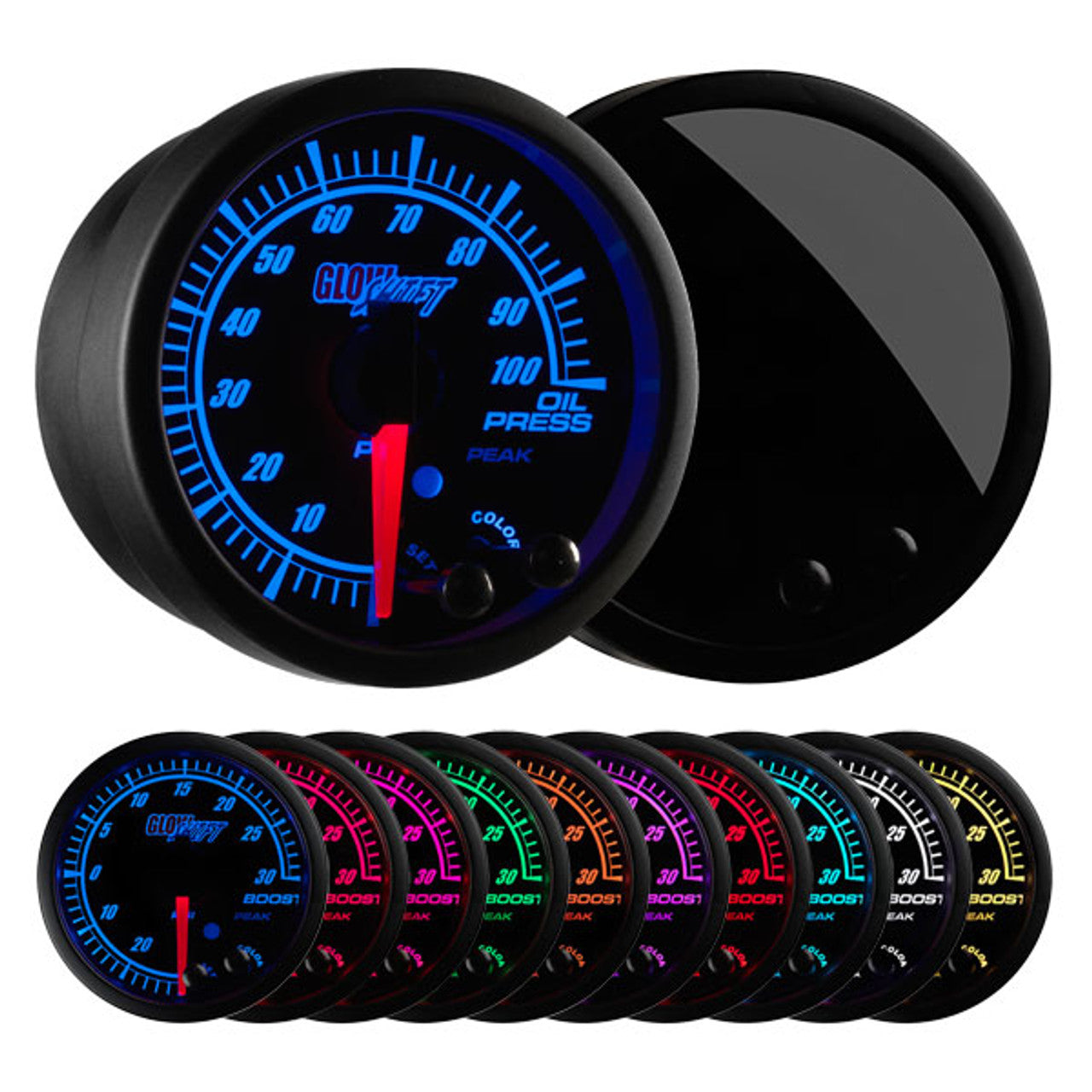

GlowShift’s Elite 10 Color Series Oil Pressure Gauge includes ultra-high performance features, and ensures your vital engine parts stay properly lubricated, protecting against premature breakdown. This oil pressure gauge reads from 0 to 100 PSI with the included electronic oil pressure sensor that reads and displays your vehicle’s oil pressure with unparalleled accuracy.

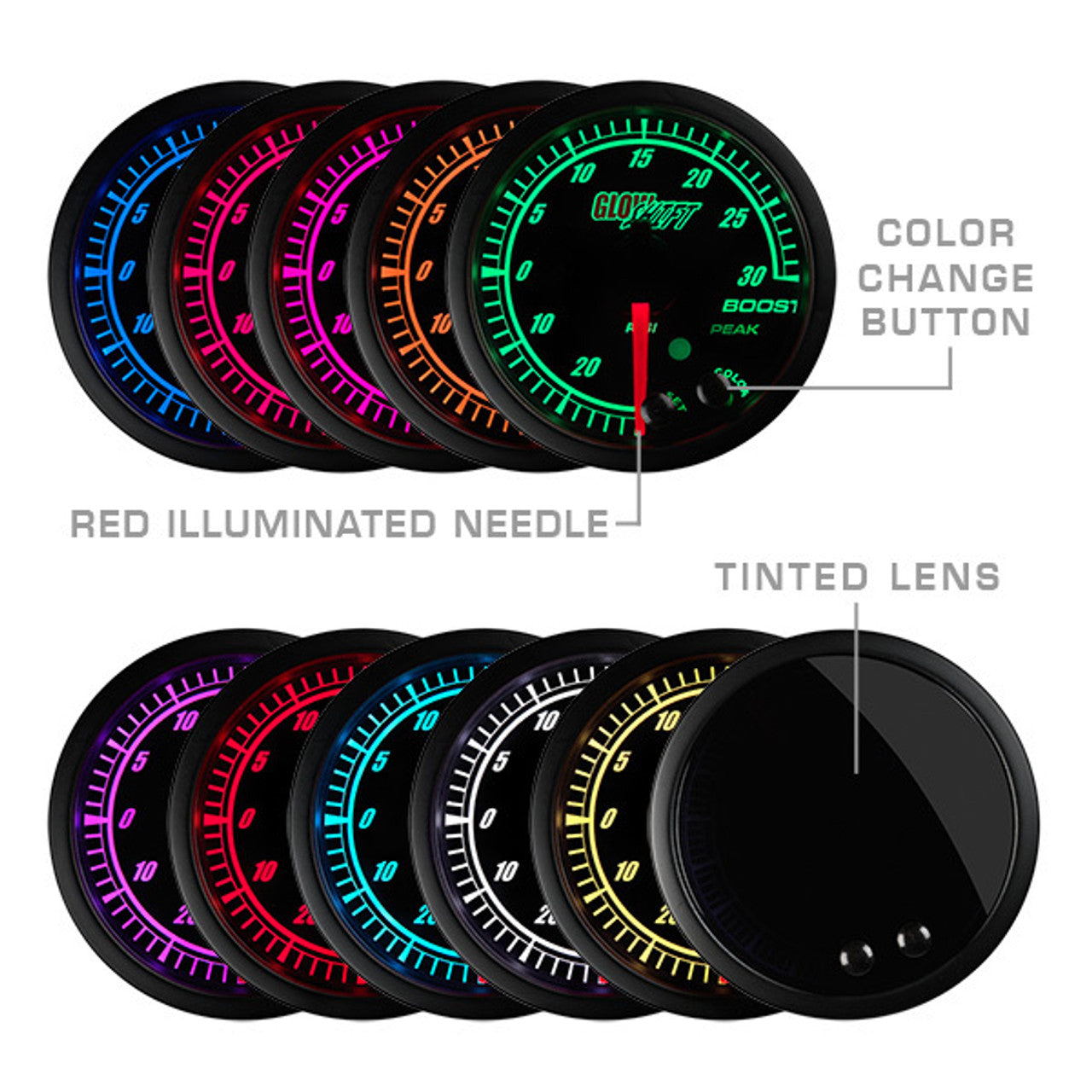

This 2 1/16" (52mm) oil pressure gauge outperforms the competition with features that include a peak recall function, programmable high and low warning functions, stepper motor technology, 10 color through dial LED lighting, as well as a self-calibration mode at startup, an illuminated red needle, and a low profile magnified tinted lens. The adjustable high and low warning functions will alert you visually or with an optional audible tone, ensuring your vehicle’s oil pressure is not running too high or too low, and the peak recall feature gives you an instant assessment of your vehicle. The included stepper motor technology allows all needle movement to be exceptionally smooth and all gauge readings to be extremely accurate. GlowShift’s 10 color through dial lighting lets you match your factory gauges or add a distinct look to your vehicle's interior, and with the color recall feature you never have to worry about resetting the gauge to your preferred color every time your vehicle is turned on. This oil pressure gauge will also dim 30% when connected to your factory headlight switch, making it easy to read while driving at night.

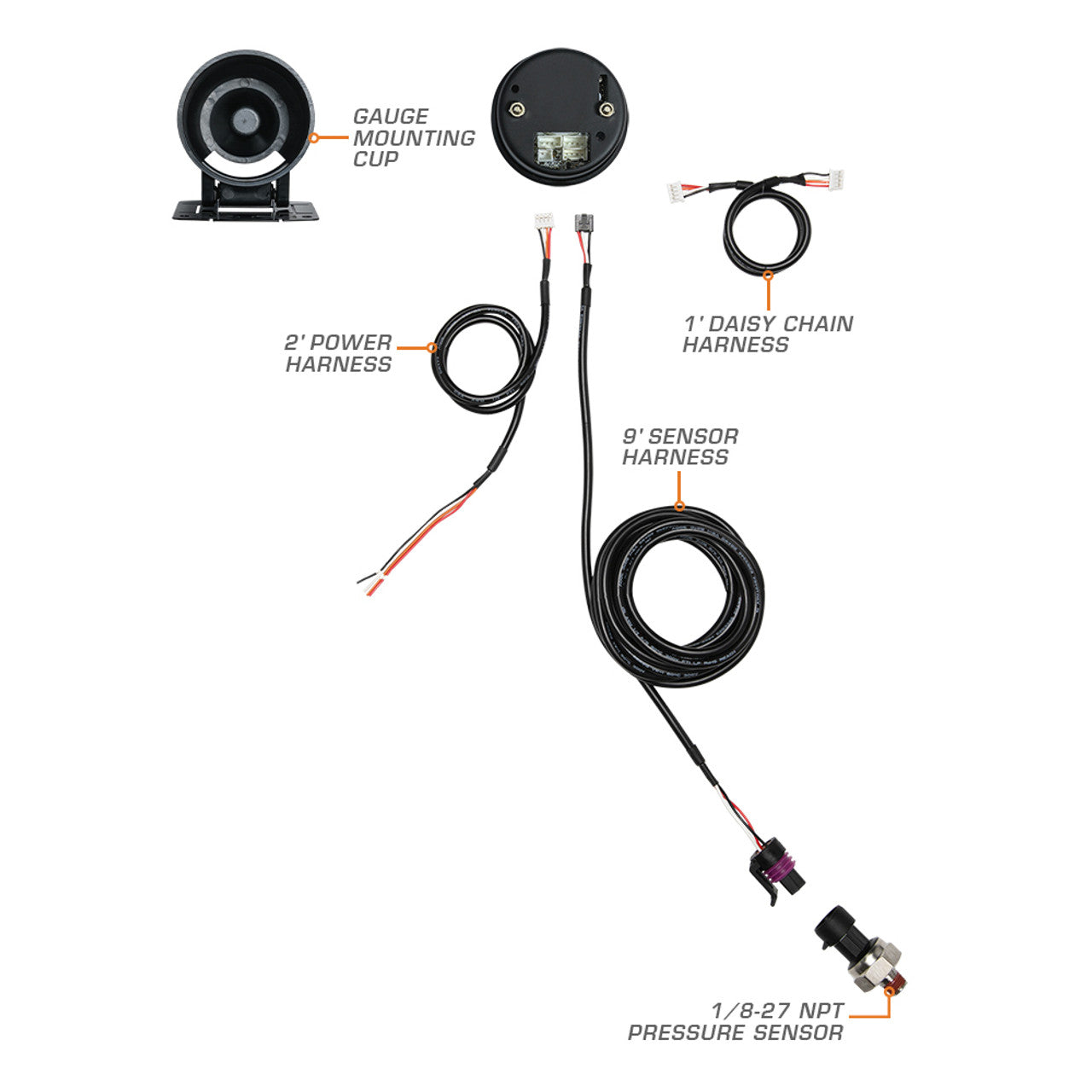

GlowShift’s Elite 10 Color Series Oil Pressure Gauge’s sleek 1/8-27 NPT electronic pressure sensor can be installed to your oil gallery, an oil gallery test port, or for an easier installation you can purchase one of GlowShift’s T-fittings or Oil Filter Sandwich Adapters. The included sensor and power wires are completely plug and play, and securely snap into the back of the gauge with the featured modular connectors. This oil pressure gauge is powered by 12 volts and allows you to power an additional three Elite 10 gauges with the daisy chain feature. GlowShift includes free lifetime technical support and a one year limited warranty with every Elite 10 Color Series Gauge.

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

Manufacturer part number: GS-ET04

• 2 1/16" (52mm) Black Face Gauge with a Magnified Tinted Lens
• Oil Pressure Reading from 0 to 100 PSI
• 1/8-27 NPT Electronic Oil Pressure Sensor
• Peak Recall Ability

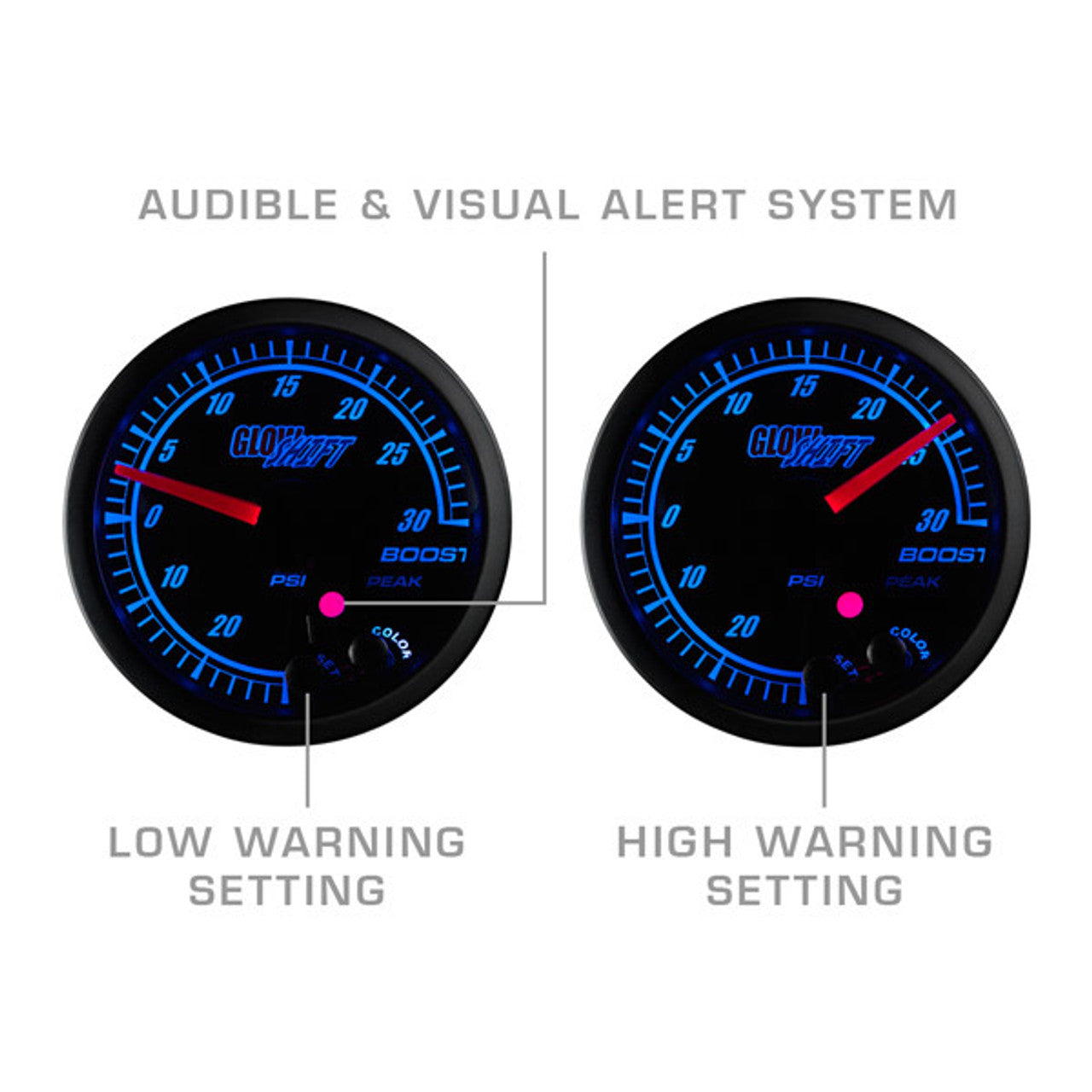

• Audible/Visual Programmable High and Low Warnings
• 10 Color LED Through Dial Lighting with Color Recall Ability
• 10 Solid Color Settings and Two Color Cycle Modes
• Dimmer Wire Allows the Gauge to Dim 30%
• 9' Oil Pressure Sensor Wire
• Gauge Depth Measures 7/8"

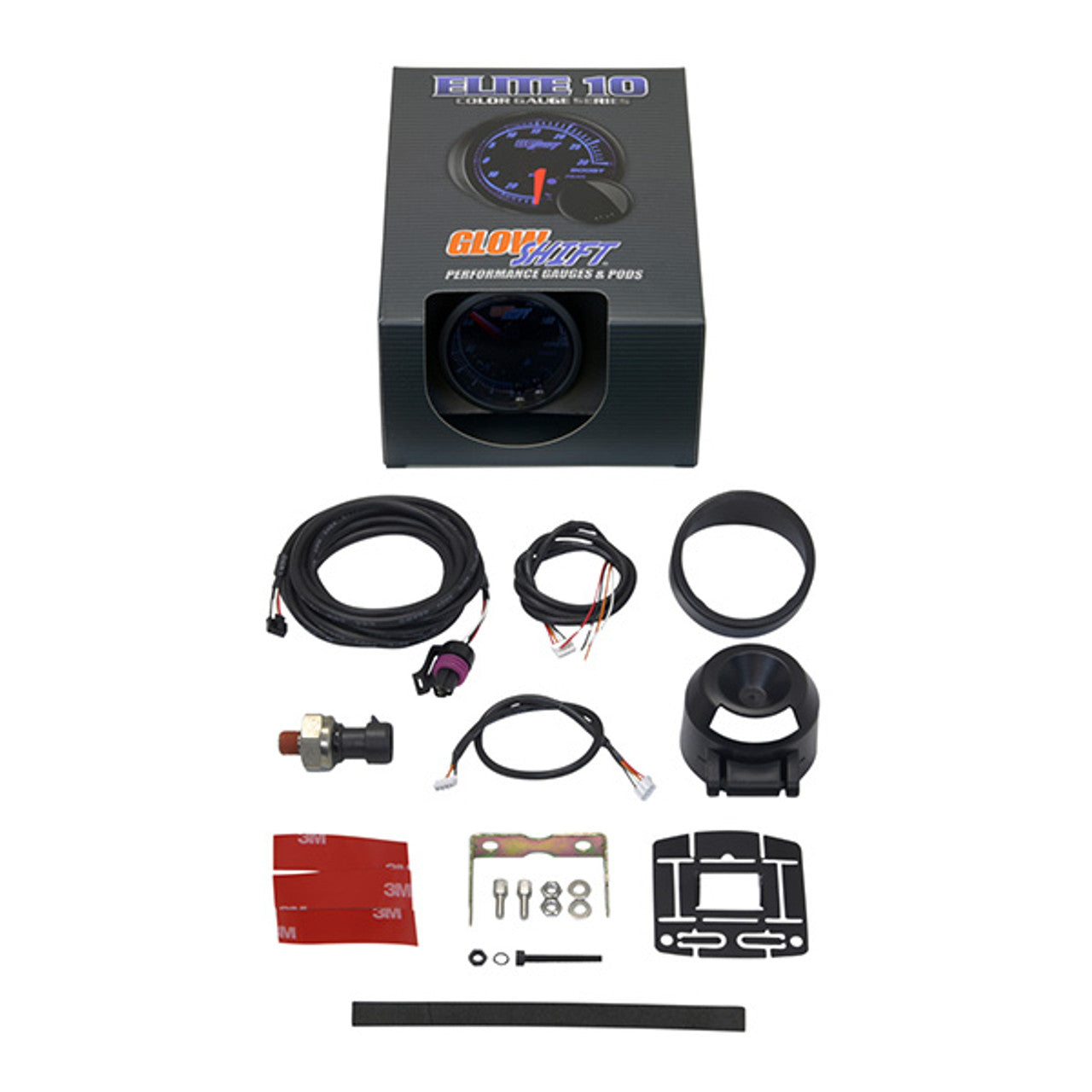

• Dashboard Pod
• Gauge Visor
• Mounting Hardware
• Installation Instructions
• Free Lifetime Technical Support
• One Year Limited Warranty
