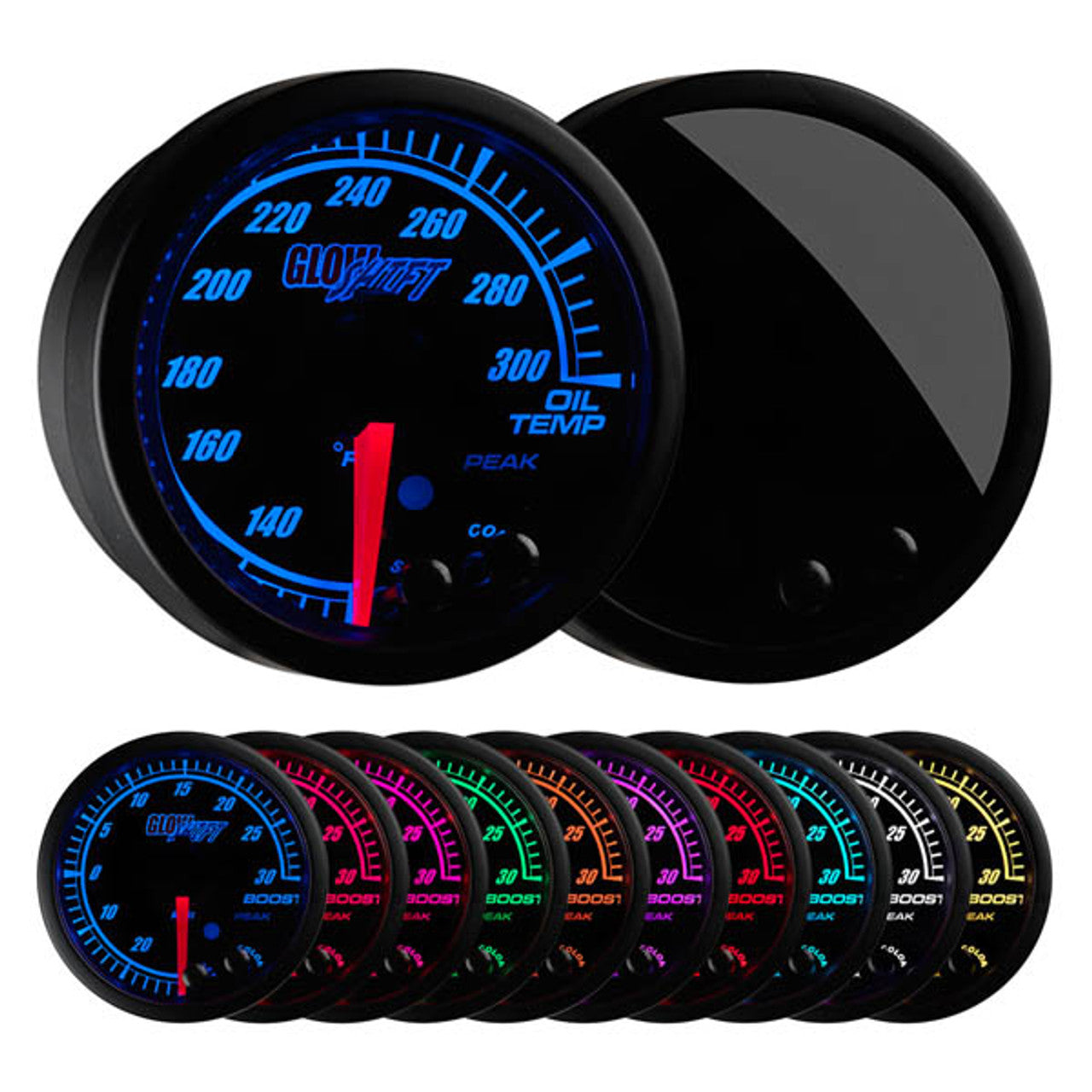

Elite 10 Color Oil Temperature Gauge | GlowShift

GlowShift’s Elite 10 Color Series Oil Temperature Gauge includes ultra-high performance features that allow you to keep a close eye on your vehicle’s oil temperature helping you guard against premature oil breakdown that can cause harmful wear to vital engine parts. This oil temperature gauge reads from 120° to 300° Fahrenheit with the included electronic temperature sensor that reads and displays your vehicle’s oil temperature with unrivaled precision.

This 2 1/16" (52mm) oil temperature gauge outperforms competition with features that include a peak recall function, programmable high and low warning functions, stepper motor technology, 10 color through dial LED lighting, as well as a self-calibration mode at startup, an illuminated red needle, and a low profile magnified tinted lens. The adjustable high and low warning functions will alert you visually or with an optional audible tone, ensuring your vehicle’s oil temp is not running too hot, and the peak recall feature gives you an instant assessment of your vehicle. The included stepper motor technology ensures all needle movement is remarkably smooth and all gauge readings exceptionally accurate. GlowShift’s 10 color through dial lighting lets you match your stock gauges or add a custom look to interior of your vehicle, and with the color recall feature you won’t have to worry about resetting the gauge to your preferred color every time you turn your vehicle on. This oil temperature gauge will dim 30% when connected to your factory headlight switch, making it much easier to read when driving at night.

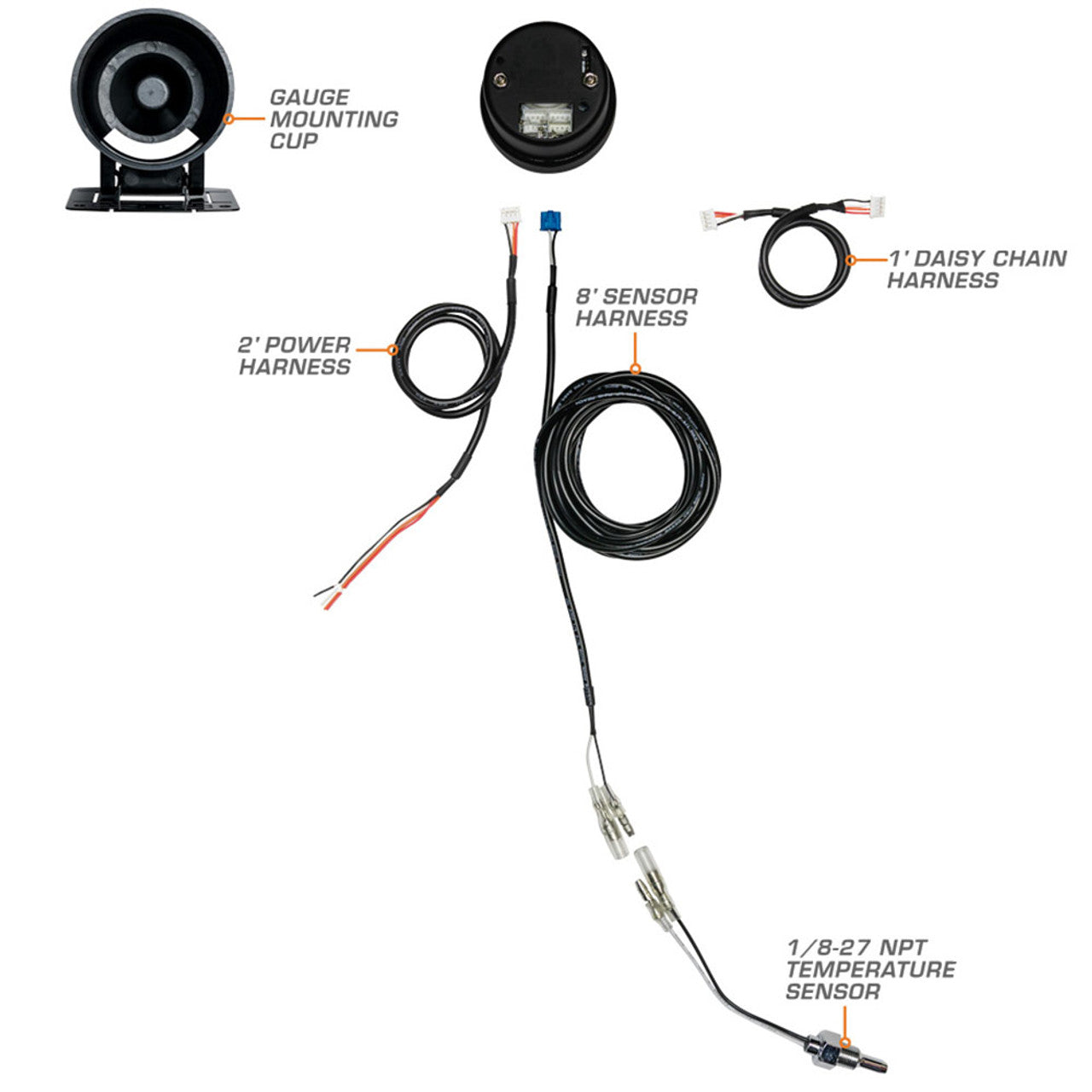

GlowShift’s Elite 10 Color Series Oil Temperature Gauge includes a sleek 1/8-27 NPT electronic temperature sensor can be installed to your oil gallery, an oil gallery test port, or for an easier installation you can purchase one of GlowShift’s T-fittings or Oil Filter Sandwich Adapters. All of the included sensor and power wires are plug and play, and securely connect into the back of the gauge with modular connectors. This oil temperature gauge is powered by 12 volts and will let you to power an additional three Elite 10 gauges with the daisy chain feature. GlowShift includes free lifetime technical support and a one year limited warranty with every Elite 10 Color Series Gauge.

Note: This gauge includes a 1/8-27 NPT thread size on the sensor and your vehicle may not come equipped with the same thread size. An additional threading adapter may be required for the installation of the sensor. If you are unsure if your application will require additional threading adapters, please contact a GlowShift Technical Support Specialist.

Manufacturer Part Number: GS-ET07

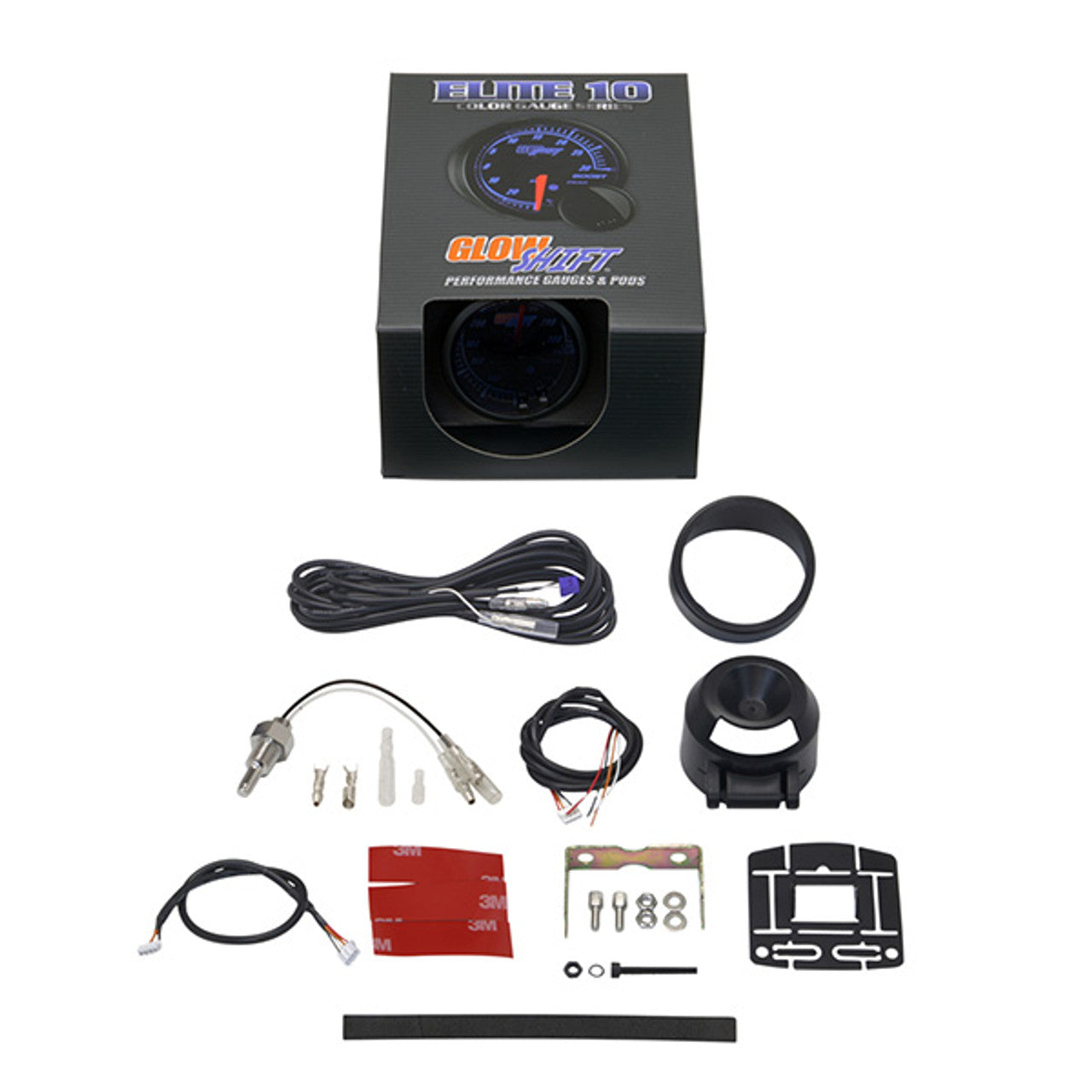

• 2 1/16" (52mm) Black Face Gauge with a Magnified Tinted Lens
• Oil Temperature Reading from 120° to 300° Fahrenheit
• 1/8-27 NPT Electronic Oil Temperature Sensor
• Peak Recall Ability

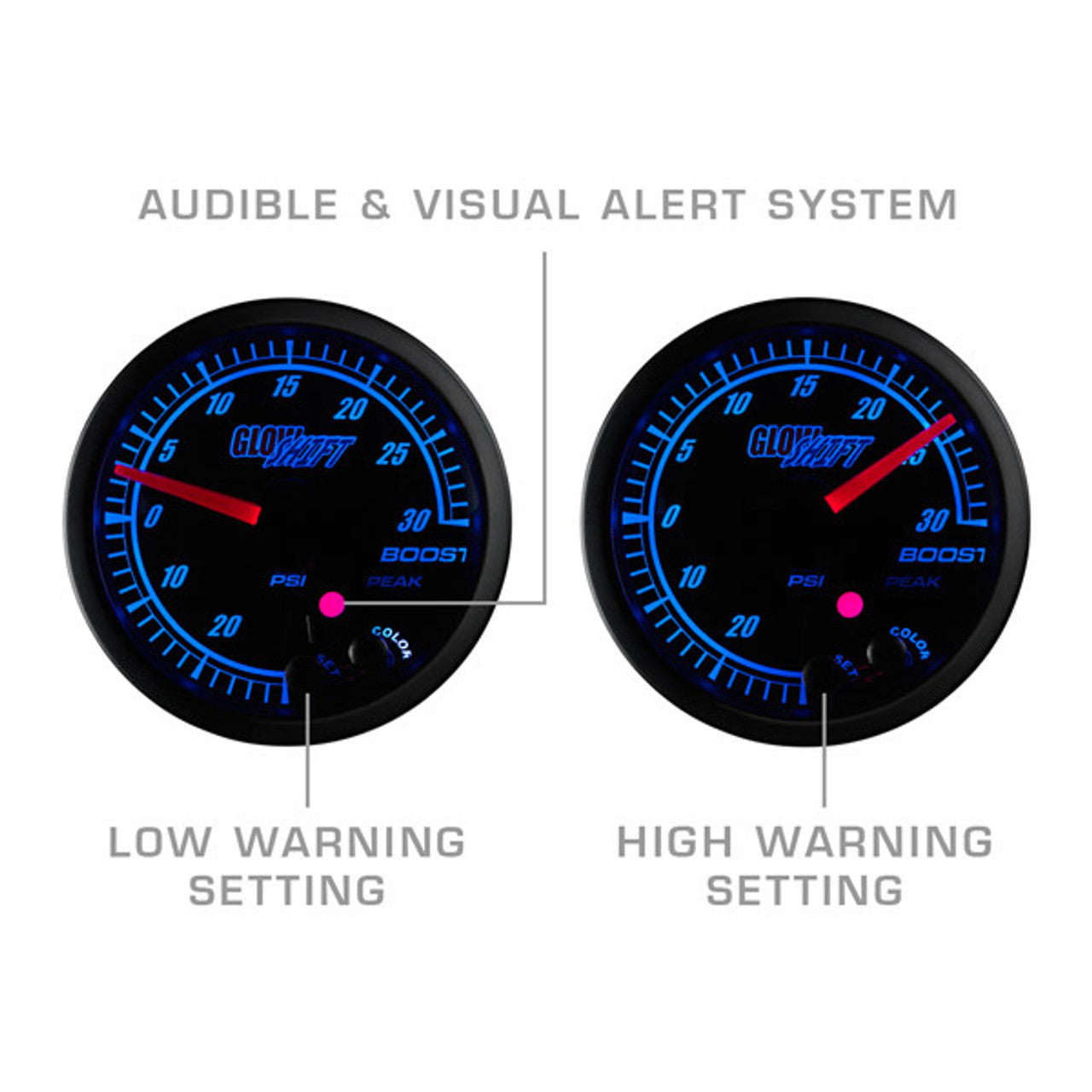

• Audible/Visual Programmable High and Low Warnings

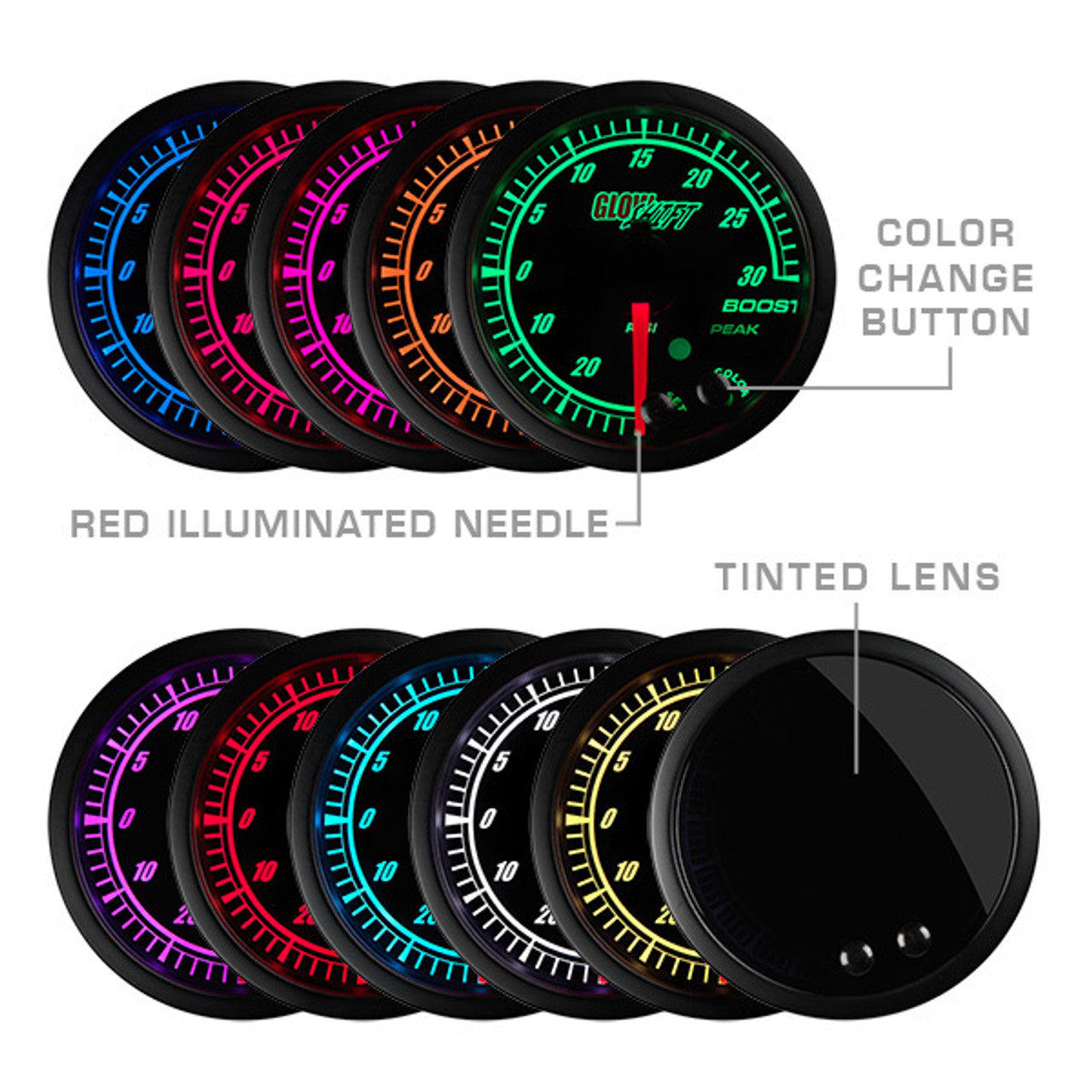

• 10 Color LED Through Dial Lighting with Color Recall Ability
• 10 Solid Color Settings and Two Color Cycle Modes
• Dimmer Wire Allows the Gauge to Dim 30%
• 8' Oil Temperature Sensor Wire
• 2' Power Harness
• Gauge Depth Measures 7/8"
• Dashboard Pod
• Gauge Visor
• Mounting Hardware
• Installation Instructions
• Free Lifetime Technical Support
• One Year Limited Warranty
