Five Channels of Fun

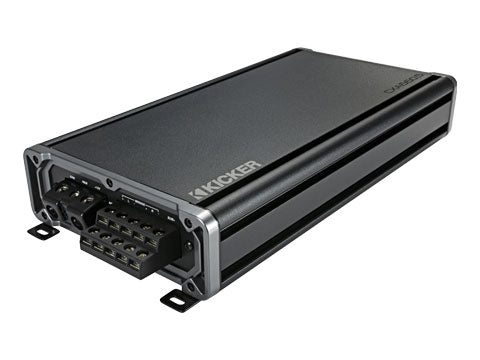

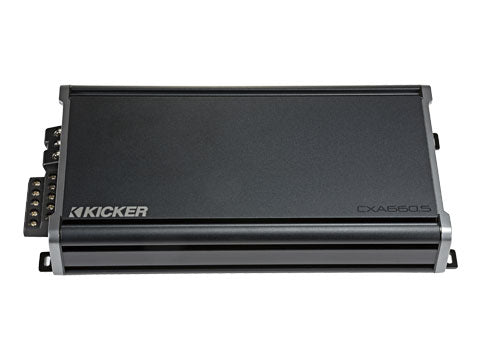

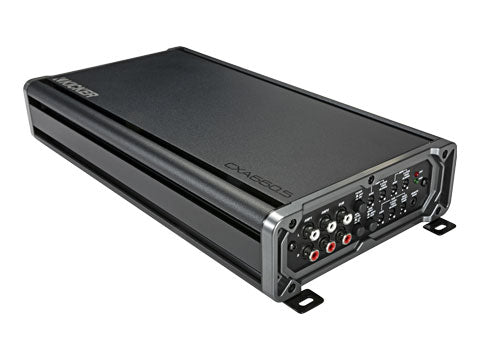

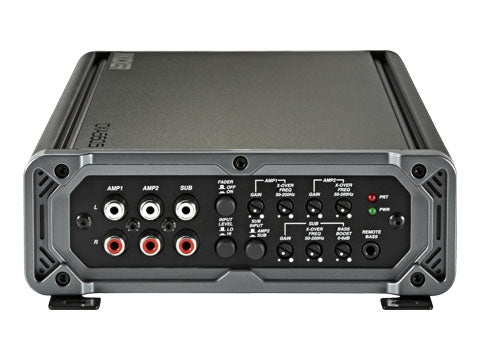

The CXA660.5 Amplifier is built to be the complete package in one cool-looking amp.
This CX amplifier uses powerful Class A/B technology to power four mid/high-range channels and an ultra-efficient Class D power plant for the bass channel. The amp also comes equipped with FIT+™ (Fail-safe Integration Technology-PLUS), giving you superior clarity and dependability.
KickEQ™ variable bass boost gives you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is also included, letting you quickly tune your entire system to taste. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
This CX amplifier delivers as much as 90 watts into four full-range channels or 180 watts into two-bridged channels, plus as much as 300 watts into one bass channel. See below for more details.
| MODEL |
| CXA660.5 |
| White Paper |
| 46CXA6605-wp.pdf |
| Power (watts/ch) 4 Ohm Stereo |
| 65x4 |
| Power (watts/ch) 2 Ohm Stereo |
| 90x4 |
| Power (watts/ch) 4 Ohm Stereo |
| 180x2 |
| Power (watts/ch) 4 Ohm Mono Sub Ch |
| 150x1 |
| Power (watts/ch) 2 Ohm Mono Sub Ch |
| 300x1 |
| CXRC Remote Bass Capable (sold sep.) |
| yes |
| Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17 W x ...L) |
| 14-1/8, 35.7 |
| Frequency Response (Hz): |
| 10Hz-20kHz |
| Frequency Response (Hz – Sub Ch.): |
| 25Hz-200Hz |
| Input Sensitivity: |
| 125mV–5V (Low Level) 1V–40V (High Level) |
| Signal-to-Noise Ratio: |
| 90dB |
| Active Crossover: |
| Amp 1-2: High Pass 10-200Hz @ 12dB/Octave Sub Channel: Low Pass 50-200Hz @ 12dB/Octave |
| Subsonic Filter: |
| 25Hz @24dB/Octave |
| KickEQ™ Boost |
| Variable 0-6dB @40Hz |
