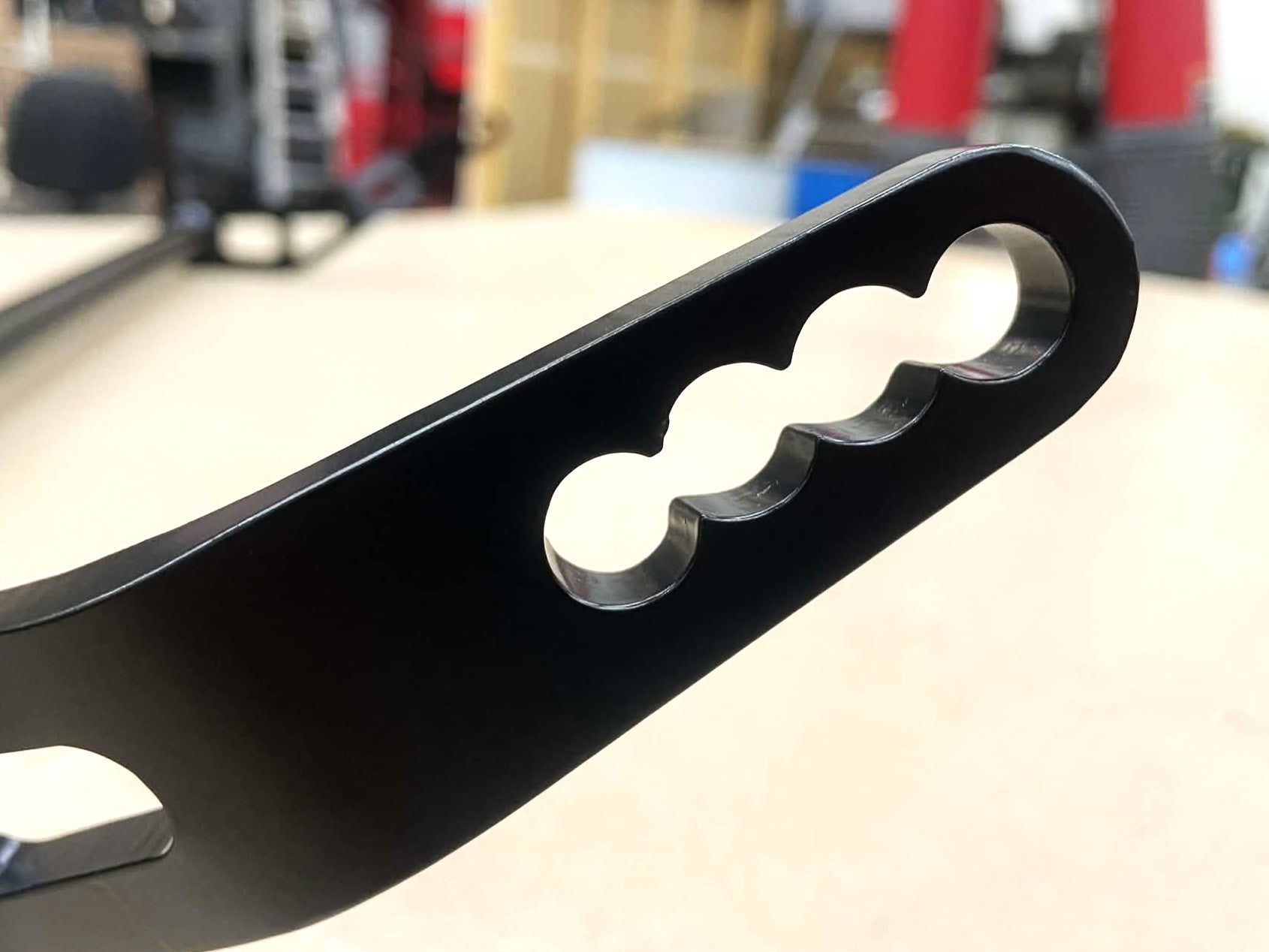

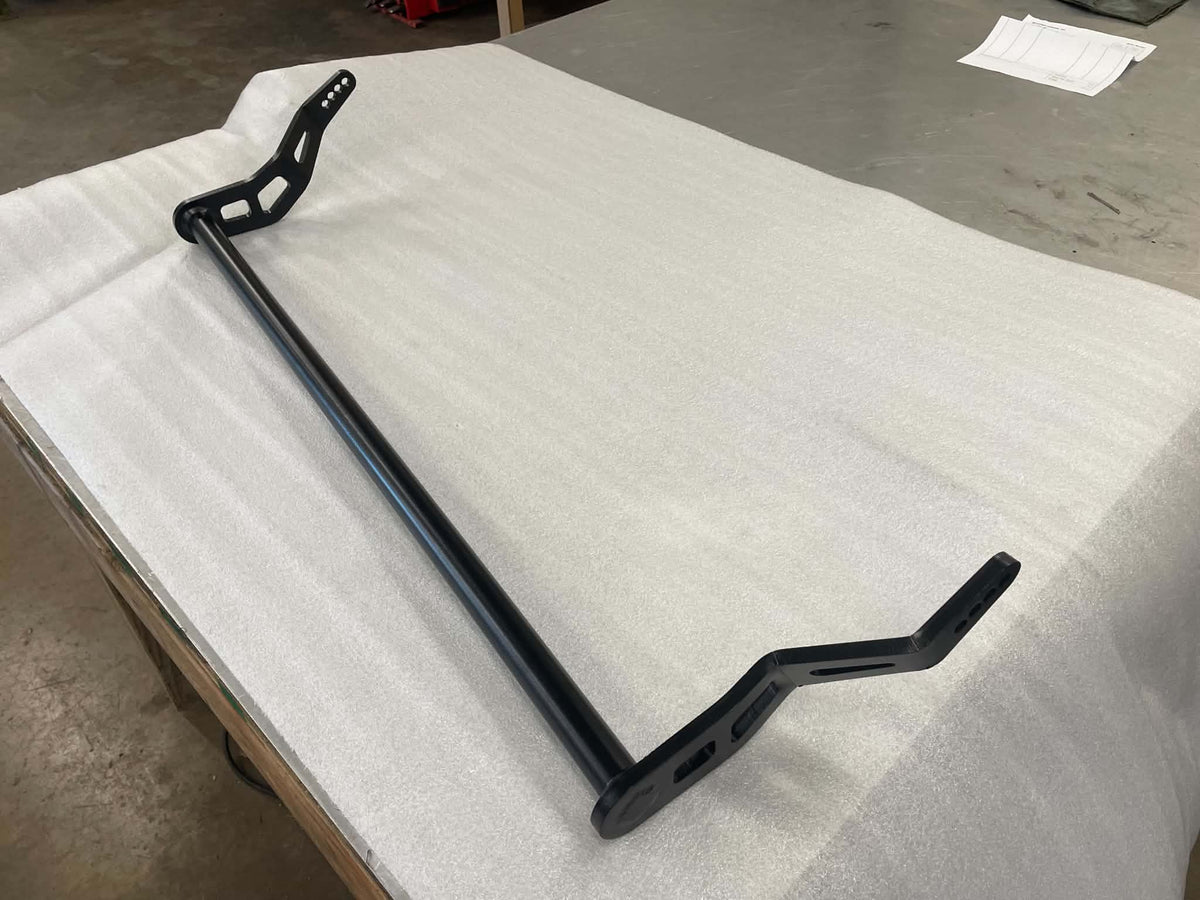

This sway bar was designed specifically for autocross and aggressive street use. With 7 different stiffness adjustments, covering the full range of all other bars on the market. Works with OEM and AWR sway bar mounts.

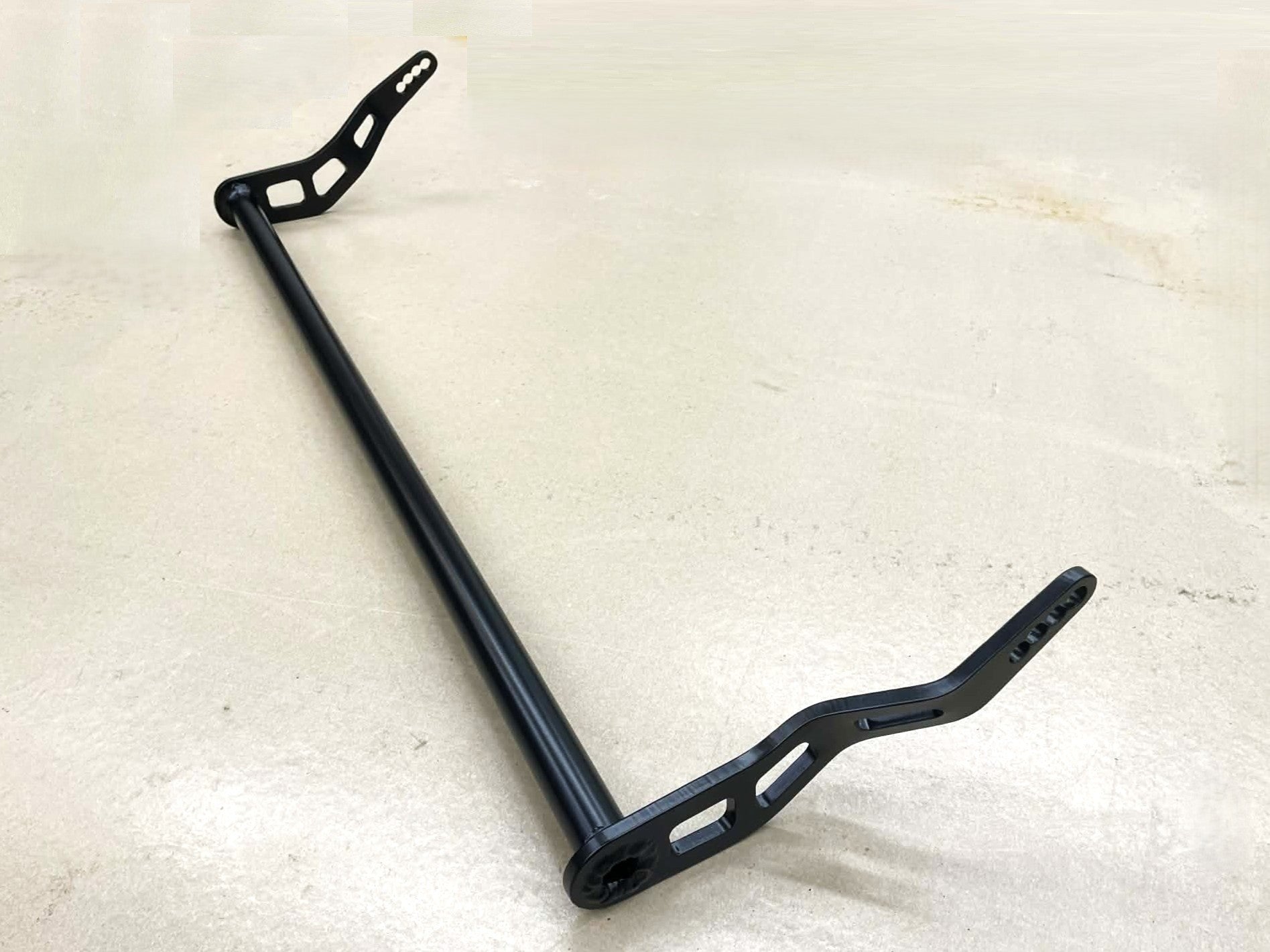

Bar is 1-1/8" Diameter tubular.

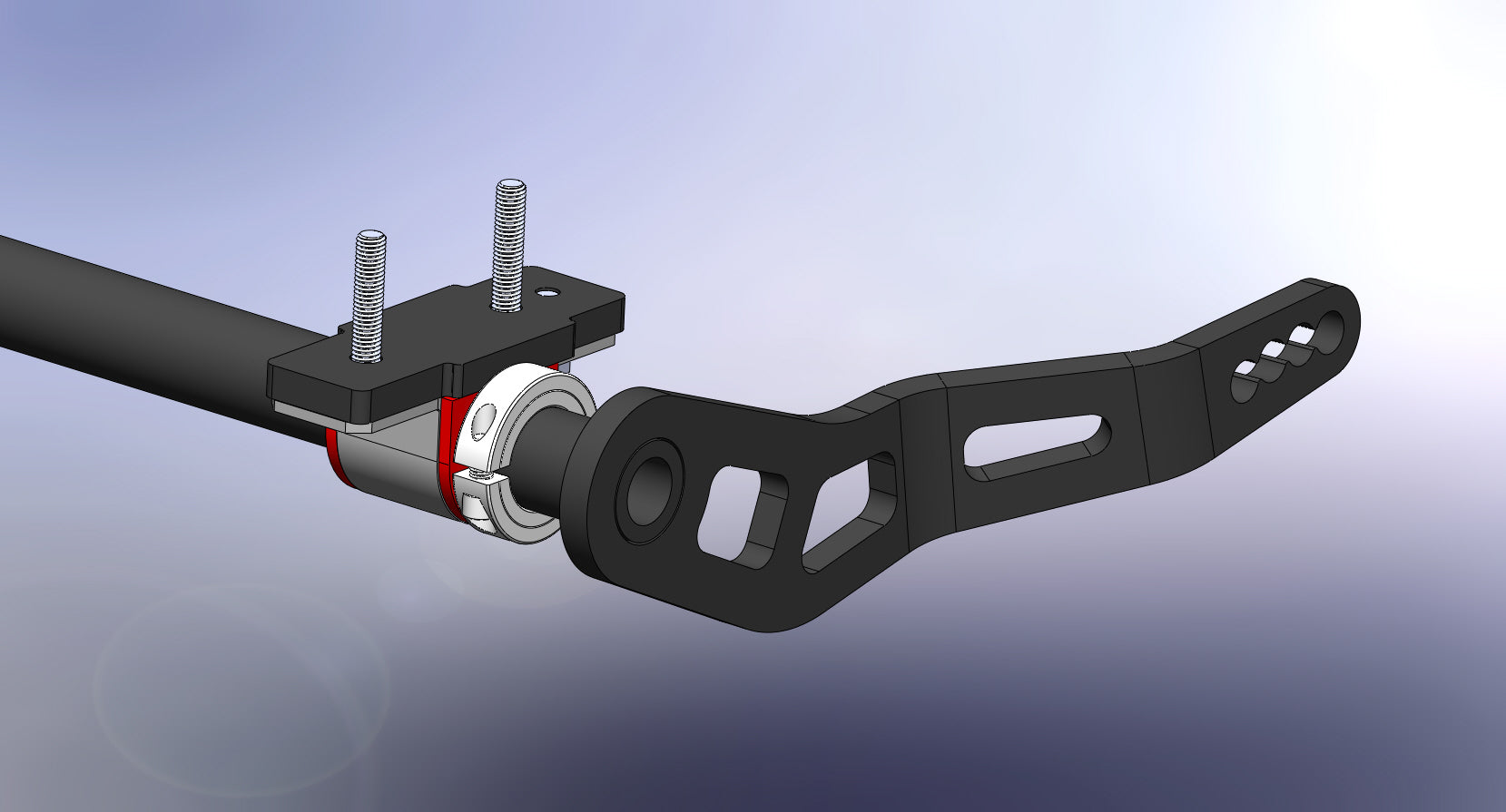

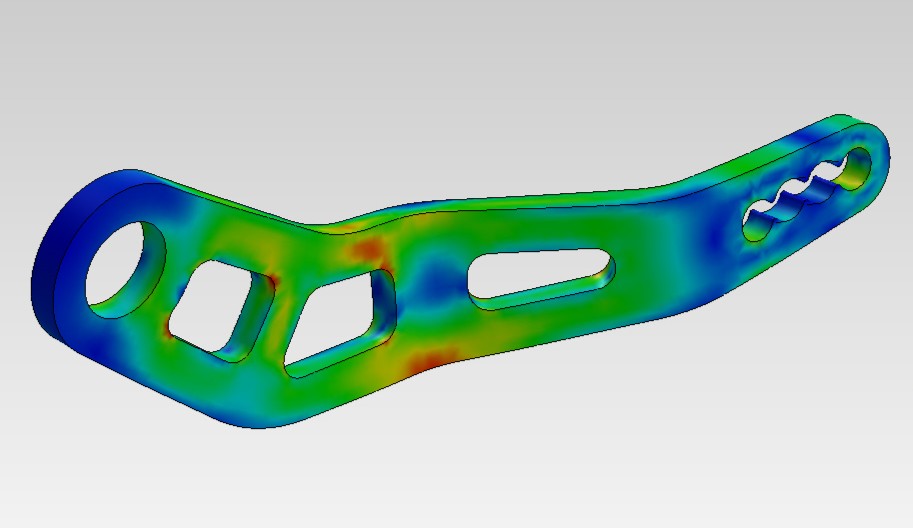

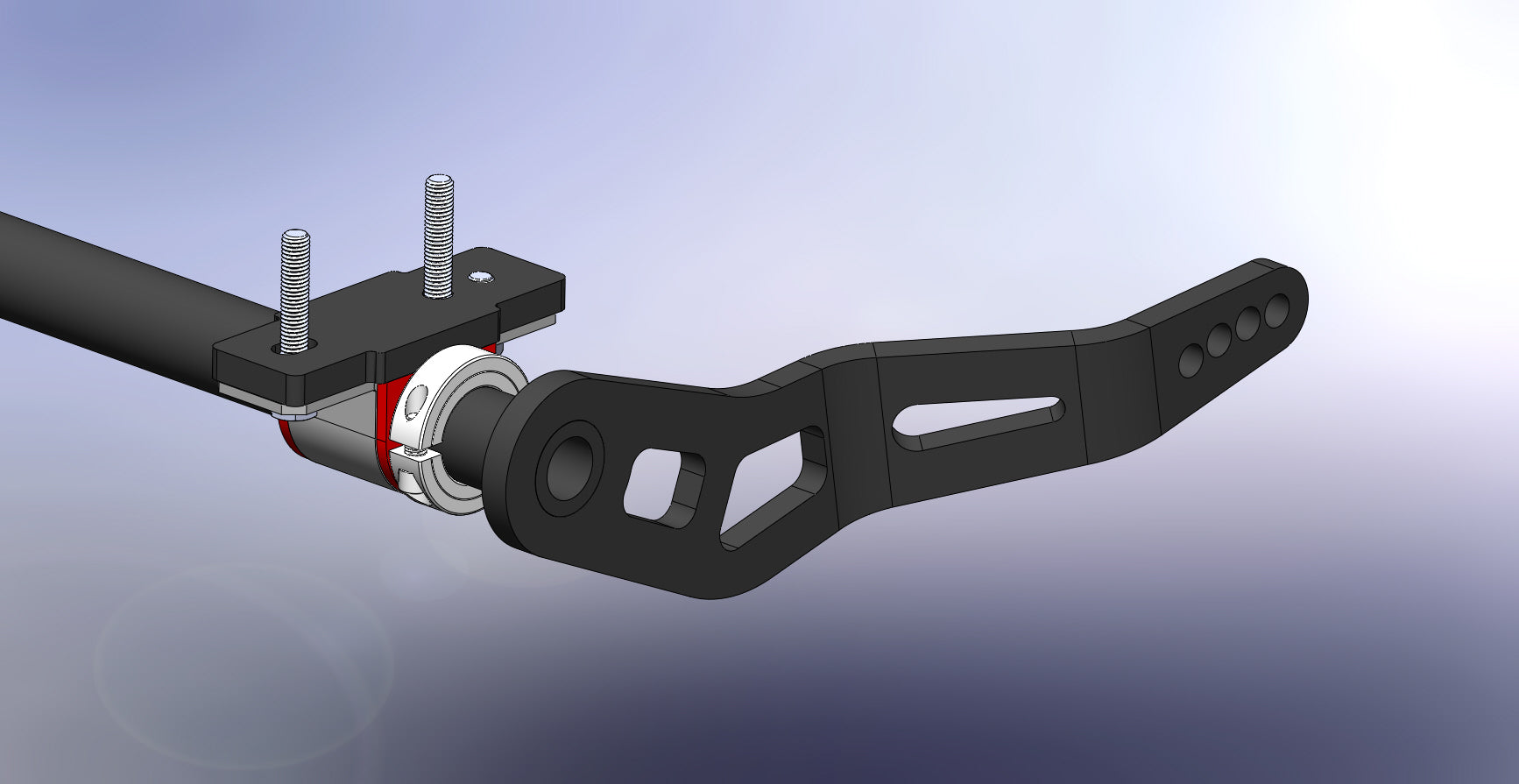

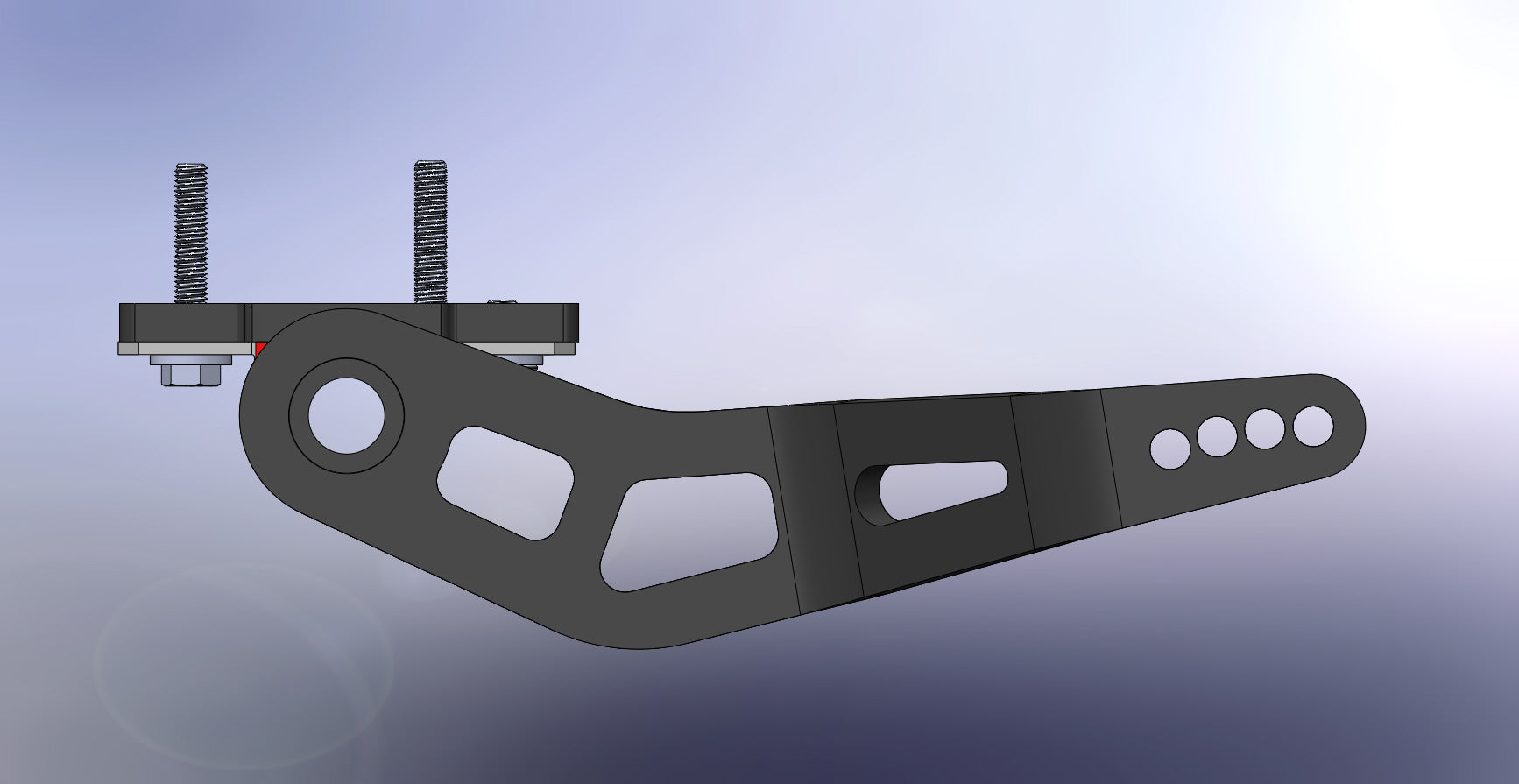

This bar was designed to give a full range of adjustability. The arm design gives more room for larger tires without interfering- even at full lock.

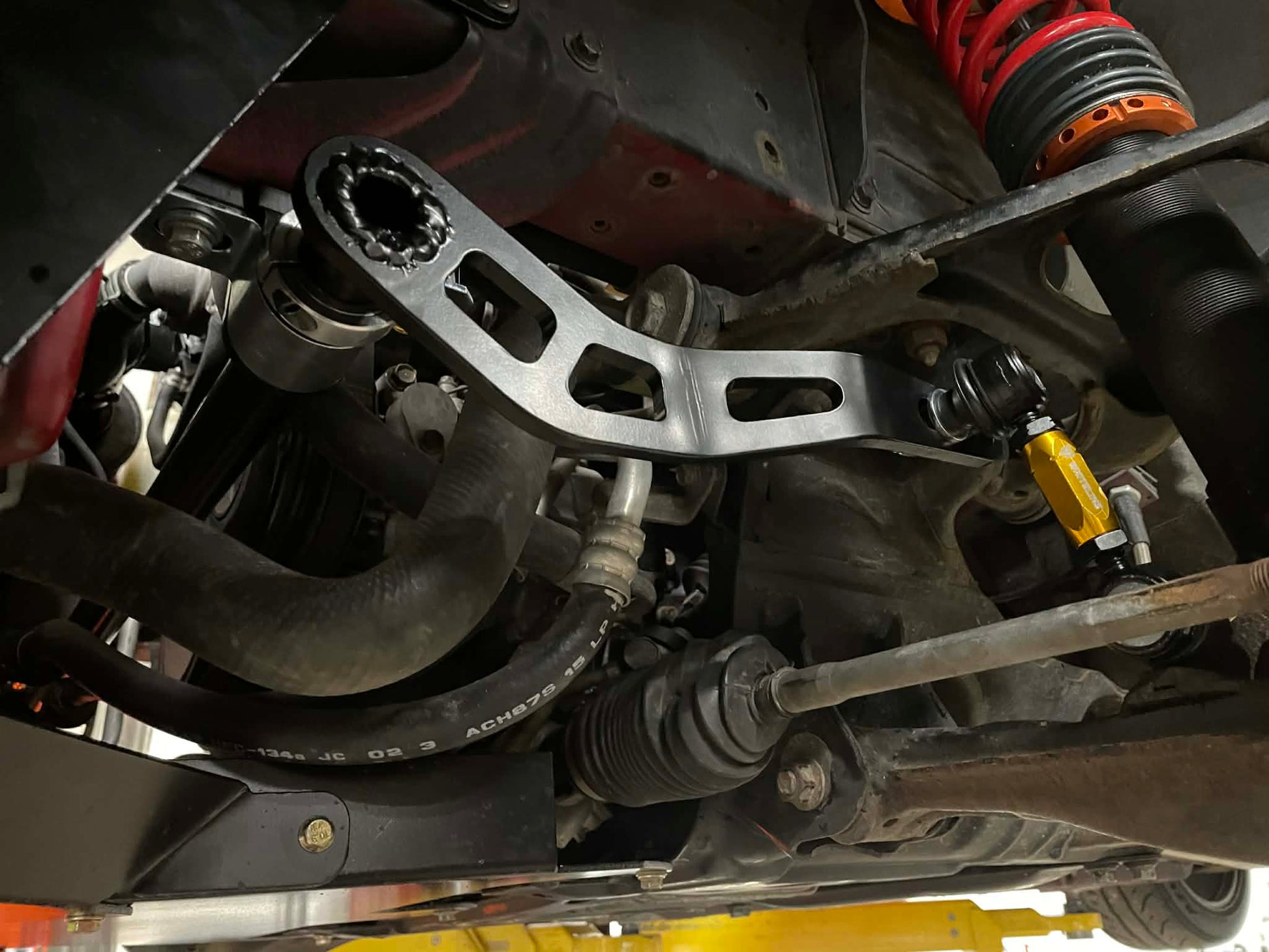

The bar mounts closer to the engine than the OE location, allowing more clearance for larger radiators and fans.

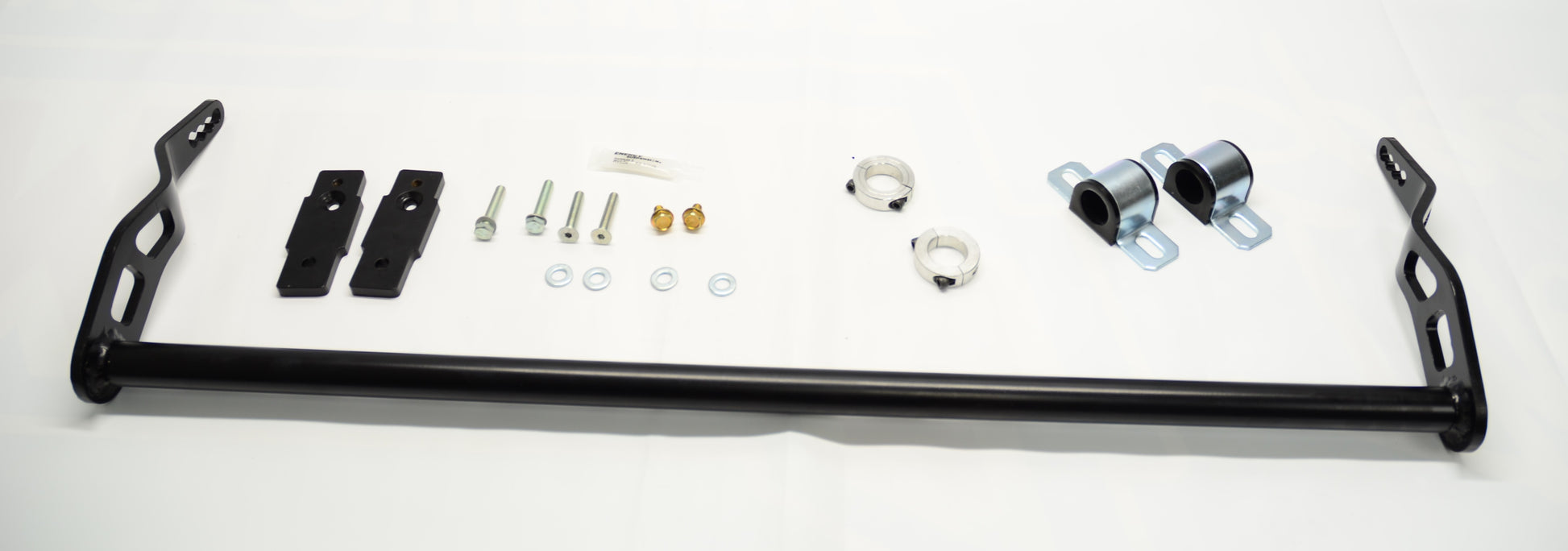

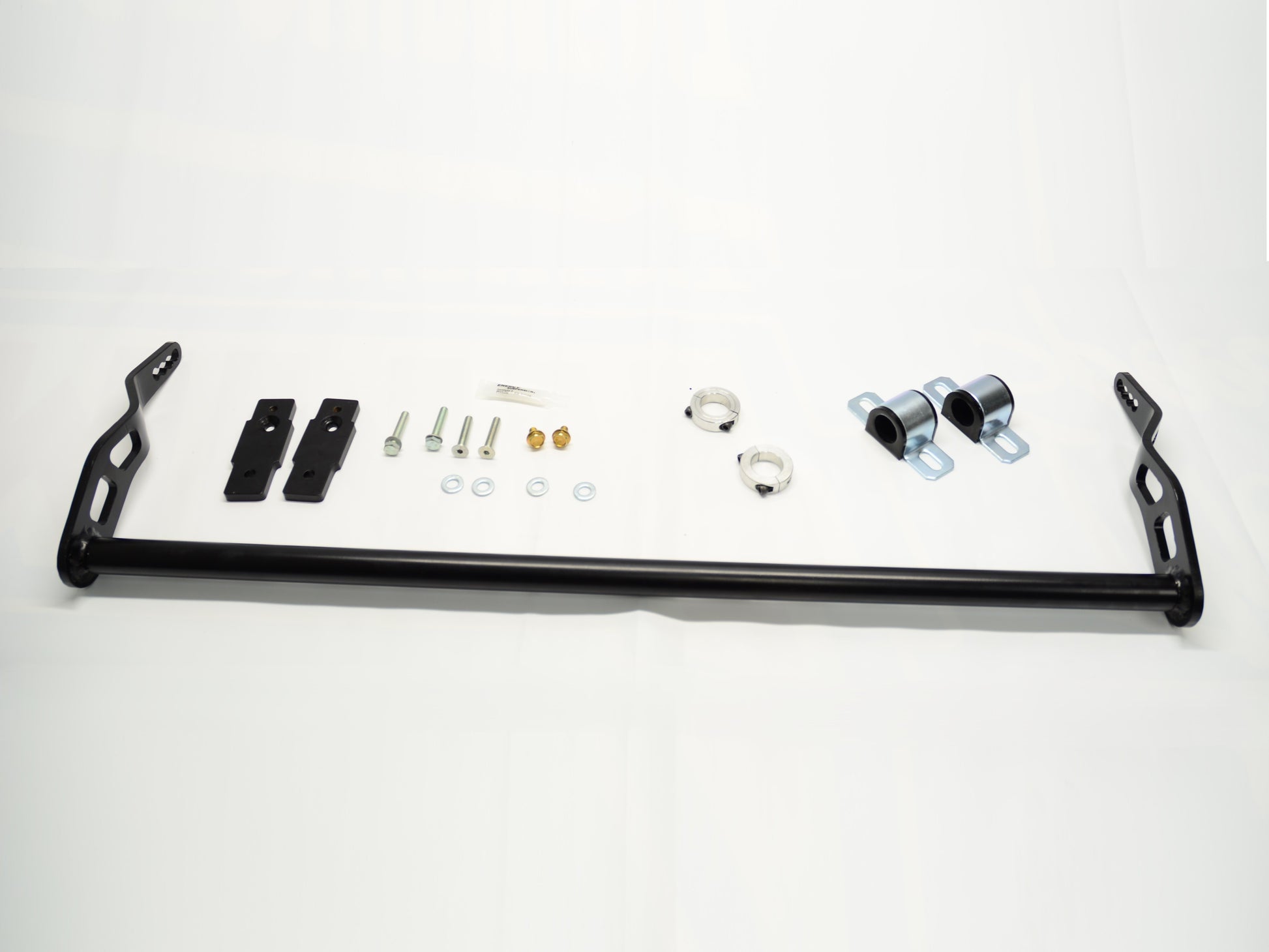

Kit Includes:
- Sway bar
- Mounting bushings
- Adapter plates
- All needed hardware
- Polyurethane bushing grease

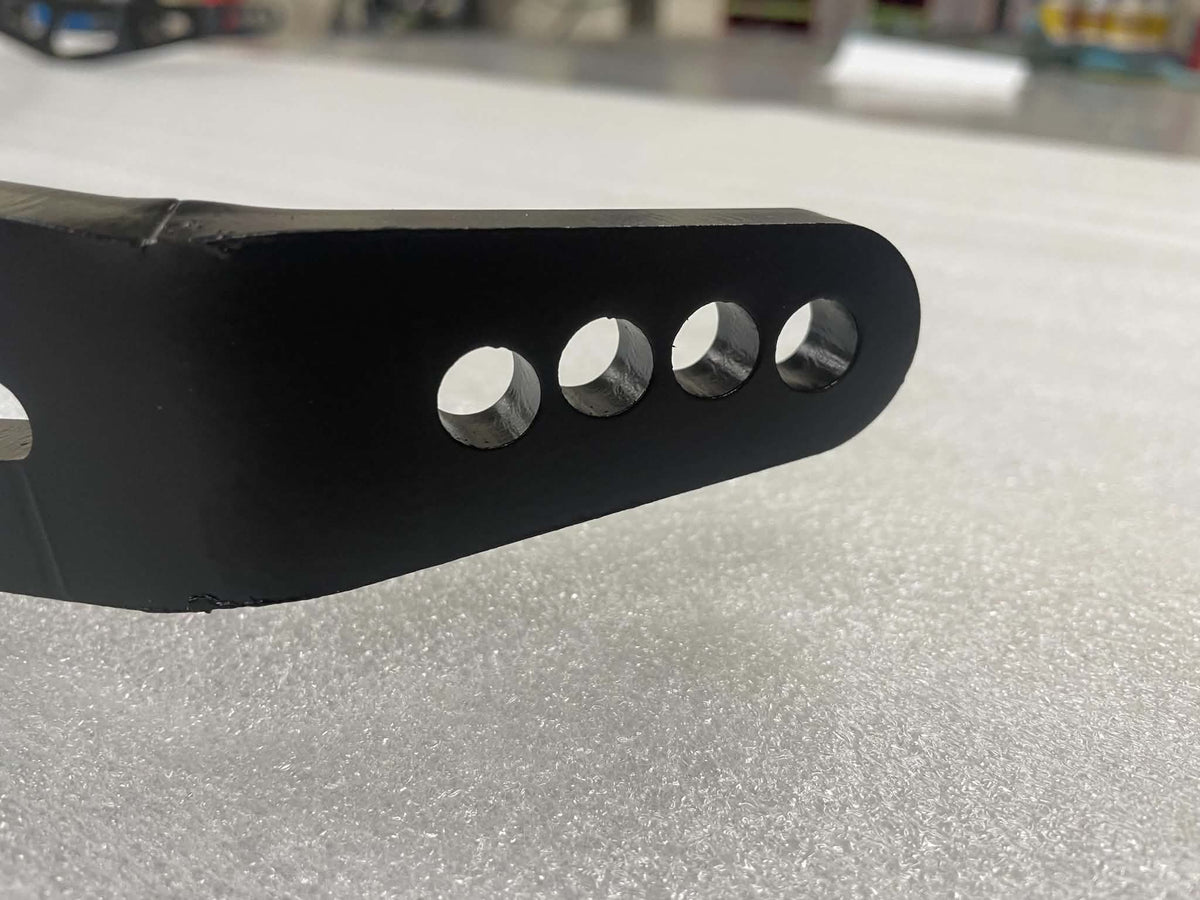

Sway bar Spring Rates. (Measured on an NB chassis with reinforcement blocks and SuperPro end links. Rates measured are linear spring rates measured at the control arm in line with the end link. Not torque values at the bar)
1-1: 495 lbs/in
1-2: 465 lbs/in
2-2: 426 lbs/in
2-3: 387 lbs/in
3-3: 370 lbs/in
3-4: 360 lbs/in
4-4: 350 lbs/in
