90-05 Miata Speaker and Sub Panel

Item # LMS-001

Regular price
$247.00
Sale price
$247.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

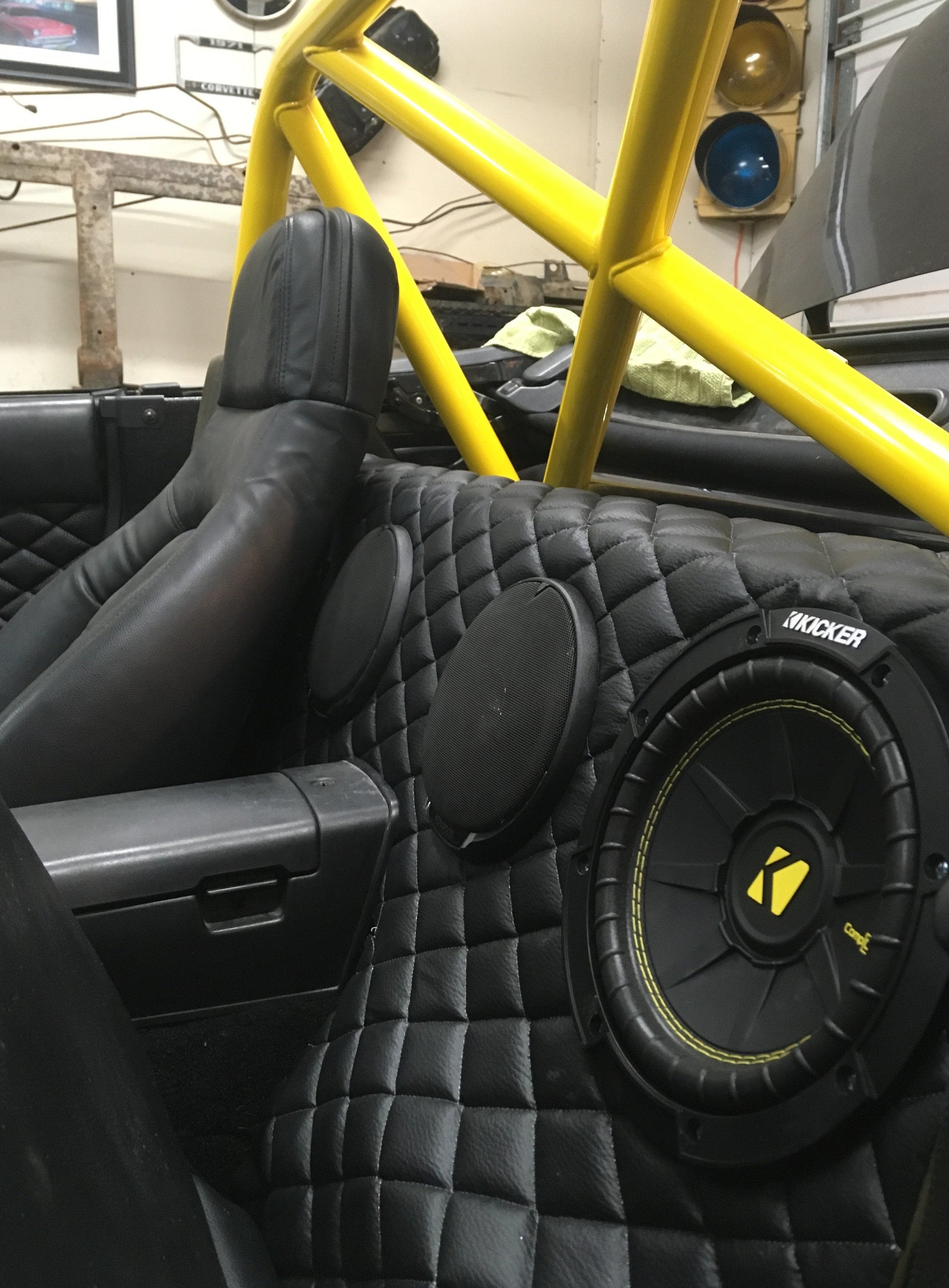

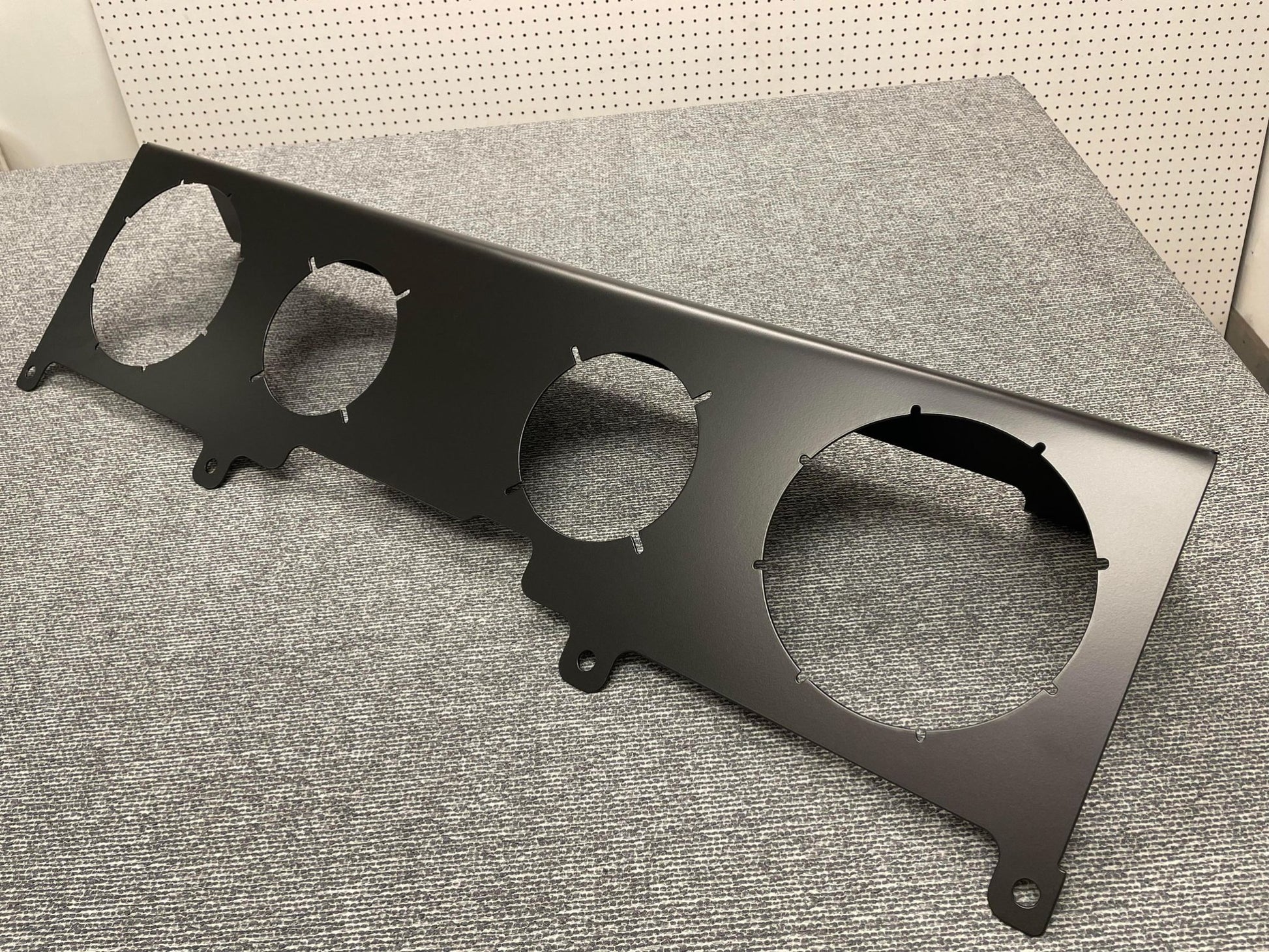

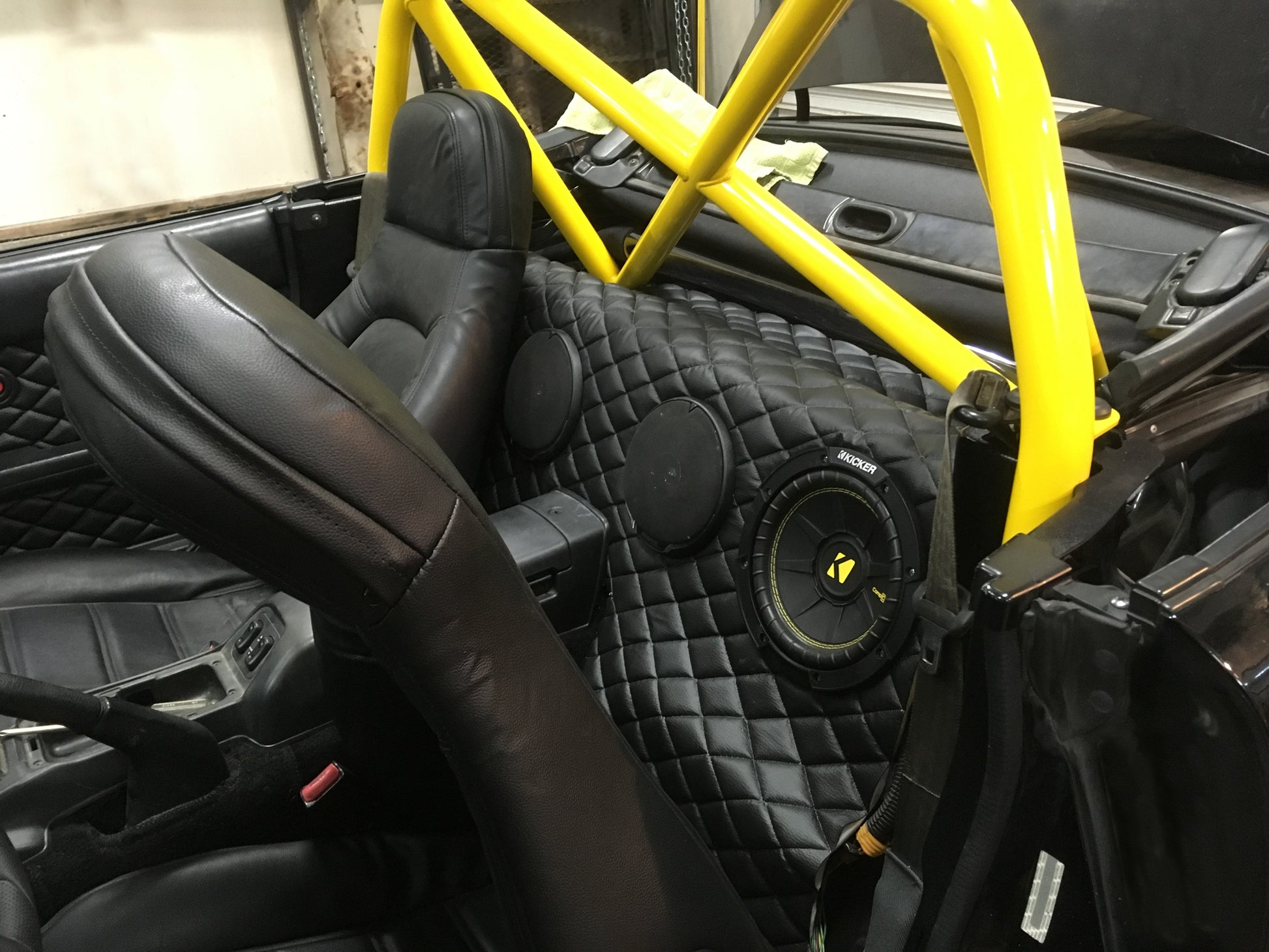

This speaker panel replaces the parcel shelf in your NA/NB Miata and allows the addition of two 6.5” speakers and a pair of 8” subwoofers. This design does not consume any interior space or trunk space and allows the seats to slide as far back as they did before. This is an open or ported design, not a sealed box; the trunk of the car because the sub box, which of course is not airtight. We recommend using free-air subs, or subs designed for a ported box. The enclosure is steel and is available either powder-coated or uncoated if you would prefer to paint it yourself. Includes all hardware and grommets needed for installation.

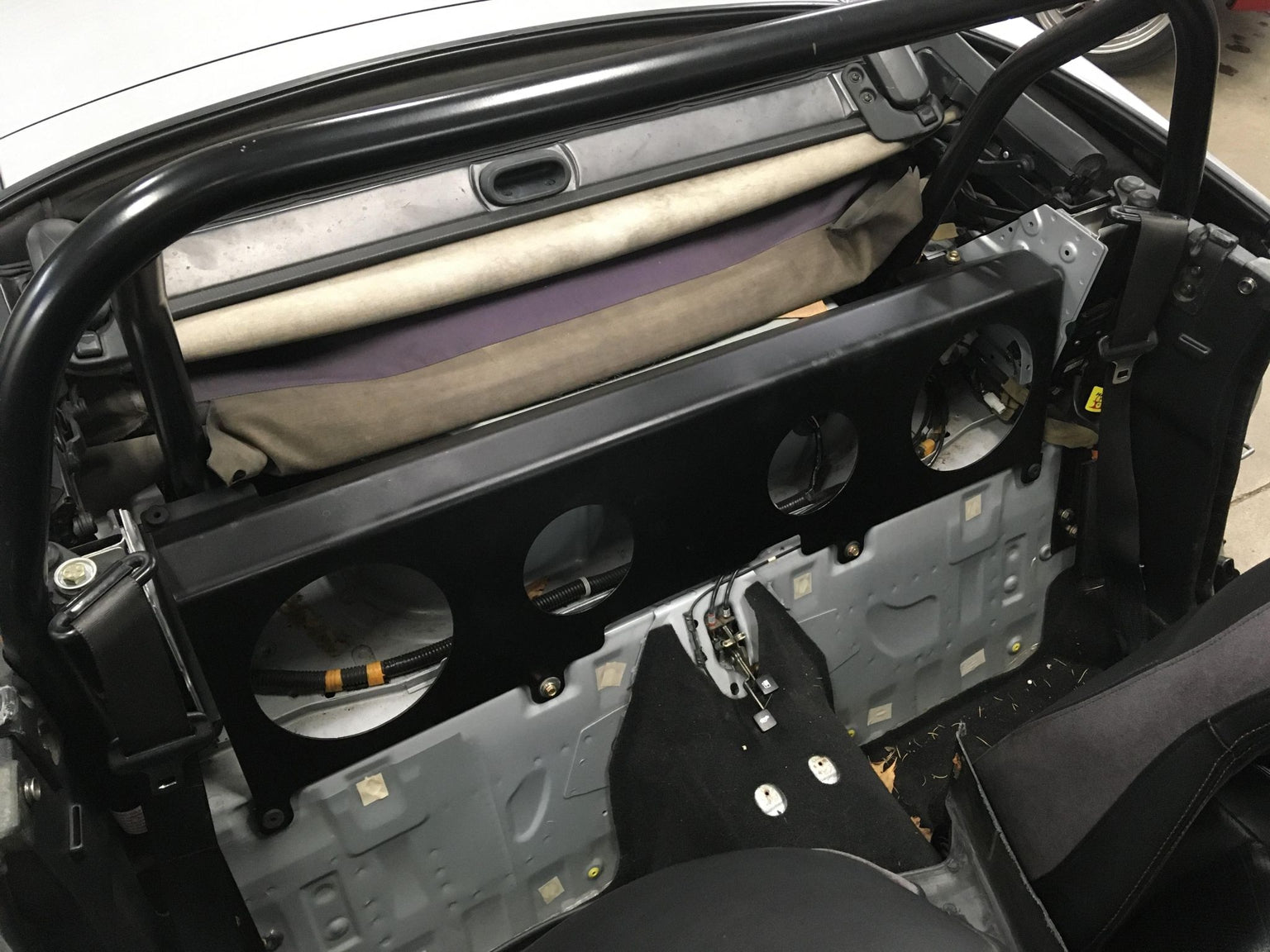

This box works with most rollbars and harness bars. See installation instructions for detailed pictures of where the panel sits to determine if your bar will work or not.

Kit includes the speaker panel plus all needed hardware and instructions. Speakers and fabric not included.

Specifications

 Subwoofer cutout diameter 7.375 in.
Subwoofer recommended max mounted depth 4 in.
Speaker cutout diameter 5.5 in.
Speaker recommended max mounted depth 2.5 in.

Some parts are not legal for use in California or other states with similar laws/regulations.

INSTALLATION INSTRUCTIONS

Click the link below to download a PDF of the installation instructions.

Installation Instructions
